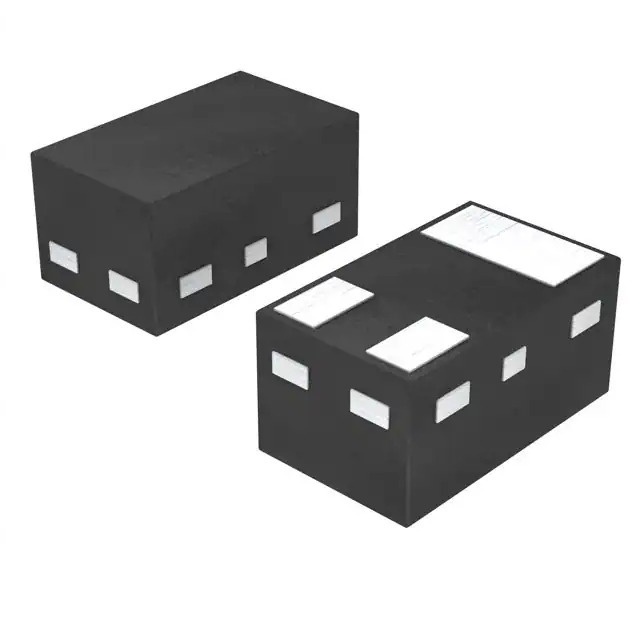

Same model may have multiple batches, images only for reference.
BC846BM,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BC846BM,315

Part No BC846BM,315
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Single
Description TRANS NPN 65V 0.1A DFN1006B-3
Datasheet
BC846BM,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Transistor Type NPN
Current - Collector (Ic) (Max) 100 mA
Voltage - Collector Emitter Breakdown (Max) 65 V
Vce Saturation (Max) @ Ib, Ic 200mV @ 500µA, 10mA
Current - Collector Cutoff (Max) 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 200 @ 2mA, 5V
Power - Max 250 mW
Frequency - Transition 100MHz
Temperature Range - Operating 150°C (TJ)
Mounting Type Surface Mount
Package / Case 3-XFDFN
Supplier Device Package DFN1006B-3
Base Product Number BC846
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0075
Win Source Part Number 1377051-BC846BM,315
Ultra Librarian 3D Model Ultra Librarian BC846BM,315 CAD Model

Description

The BC846BM is a NPN Bipolar Transistor from Nexperia USA Inc.

  • Series: BC846
  • Mounting Type: Surface Mount
  • Maximum Collector Current: 100 mA
  • Maximum Collector-Emitter Breakdown Voltage: 65 V
  • DC Current Gain: 200 @ 2 mA, 5V
  • Saturation Voltage: 200mV @ 500µA, 10mA
  • Collector Cutoff Current: 15nA
  • Application: Automotive
  • Packaging: Tape & Reel
  • RoHS: Compliant
  • ECCN: EAR99
