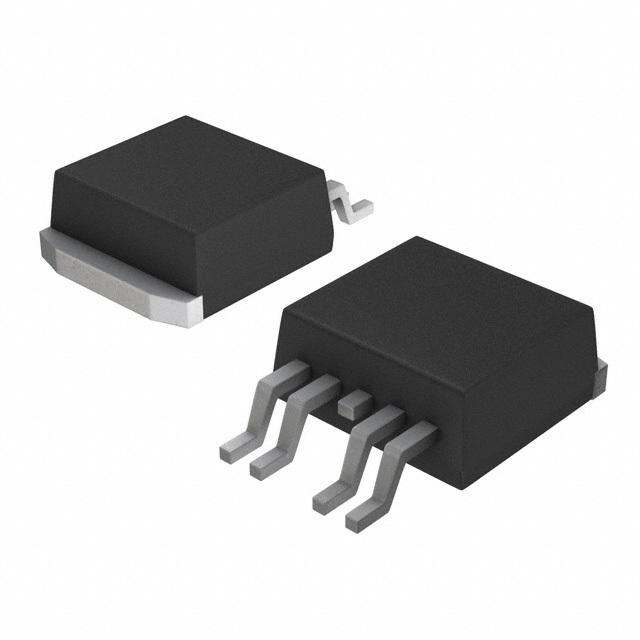

Same model may have multiple batches, images only for reference.
BUK7105-40AIE,118 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BUK7105-40AIE,118

Part No BUK7105-40AIE,118
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 75A D2PAK
Datasheet
BUK7105-40AIE,118 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 75A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 1mA
Max Gate Charge 127nC @ 10V
Max Input Capacitance 5000pF @ 25V
Maximum Gate-Source Voltage ±20V
FET Feature Current Sensing
Power Dissipation (Max) 272W (Tc)
Maximum Rds On at Id,Vgs 5 mOhm @ 50A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-426
Dimension TO-263-5, D2Pak (4 Leads + Tab), TO-263BB
Win Source Part Number 1025182-BUK7105-40AIE,118
Popularity Medium
Supply and Demand Status Balance
Quantity per package 800
Ultra Librarian 3D Model Ultra Librarian BUK7105-40AIE,118 CAD Model

Description

The Nexperia BUK7105-40AIE,118 is an N-channel MOSFET that comes in SOT-426 package.

  • Drain-Source Breakdown Voltage: 40V
  • Continuous Drain Current: 75A @ 25°C
  • Rds On: 5 mOhm @ 50A and 10V
  • Gate-Source Voltage: ±20V
  • Gate-Source Threshold Voltage: 4V @ 1mA
  • Gate Charge: 127nC @ 10V
  • Power Dissipation: 272W (Tc)
  • Mounting: SMD (SMT)
  • Temperature Range: -55°C to 175°C (TJ)
  • Packaging: Reel
  • Status: Obsolete
