The PMH400UNEH is an N-channel MOSFET manufactured by Nexperia USA Inc.

• Series: PMH400
• Application: Automotive
• Voltage Drain-Source (Max): 30 V
• Power Dissipation: 360 mW (Ta), 2.23 W (Tc)

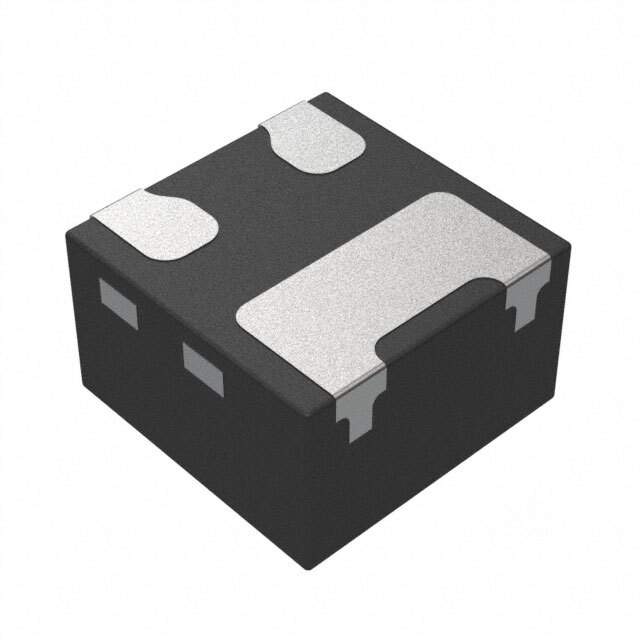

• Package: 3-XFDFN
• Mounting Type: Surface Mount
• Voltage Gate-Source (Max): ±8V
• Operating Temperature: -55°C to 150°C (TJ)
• Drive Voltage: 1.5V (max Rds On), 4.5V (min Rds On)
• Continuous Drain Current: 900mA @ 25°C
• Rds On: 460 mOhm @ 700mA and 4.5V
• Vgs(th): 950mV @ 250µA
• Gate Charge: 0.93 nC @ 4.5 V
• Input Capacitance: 4540 pF @ 15 V
