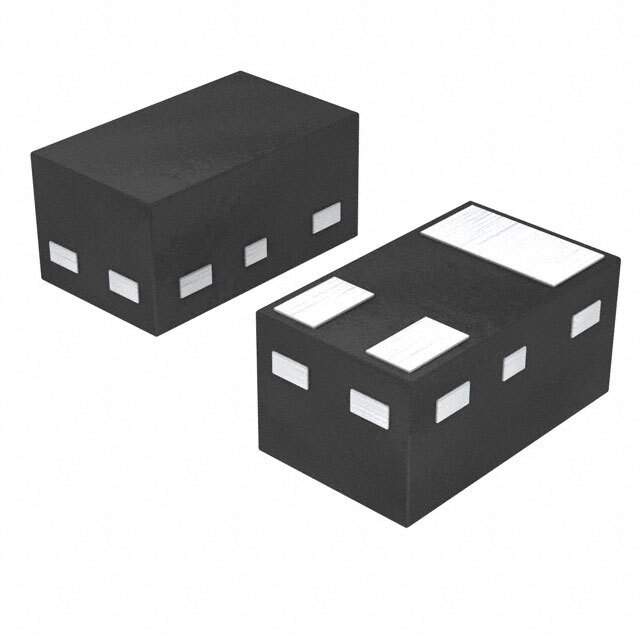

PMZB600UNELYL Real Image
Same model may have multiple batches, images only for reference.

PMZB600UNELYL

Part No PMZB600UNELYL
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 20V 600MA DFN1006B-3 / N-Channel 20 V 600mA (Ta) 360mW (Ta) Surface Mount DFN1006B-3
Datasheet
PMZB600UNELYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 20 V
Current - Continuous Drain (Id) @ 25°C 600mA
Drive Voltage (Max Rds On, Min Rds On) 1.2V, 4.5V
Rds On (Max) @ Id, Vgs 620mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs 0.7 nC @ 4.5 V
Vgs (Max) ±8V
Input Capacitance (Ciss) (Max) @ Vds 21.3 pF @ 10 V
Power Dissipation (Max) 360mW
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Surface Mount
Supplier Device Package DFN1006B-3
Case / Package 3-XFDFN
Base Product Number PMZB600
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0095
Other Part Number 1727-7378-2,1727-7378-1,934070912315,PMZB600UNELYL-ND,1727-7378-6
Standard Package 10,000
Win Source Part Number 1325331-PMZB600UNELYL
Ultra Librarian 3D Model Ultra Librarian PMZB600UNELYL CAD Model

Description

The Nexperia USA Inc. PMZB600UNELYL is a MOSFET transistor, which is an N-channel FET type.

  • Drain to Source Voltage: 20V
  • Continuous Drain Current: 600mA @ 25°C
  • Rds On (Max) @ Id, Vgs: 620mOhm @ 600mA, 4.5V
  • Vgs(th) (Max) @ Id: 950mV @ 250μA
  • Power Dissipation (Max): 360mW
  • Package: DFN1006B-3
  • Qg (Max) @ Vgs: 0.7 nC @ 4.5 V
  • Ciss (Max) @ Vds: 21.3 pF @ 10 V
  • Temperature Range: -55°C to 150°C (TJ)
  • ROHS3 Compliant: Yes
