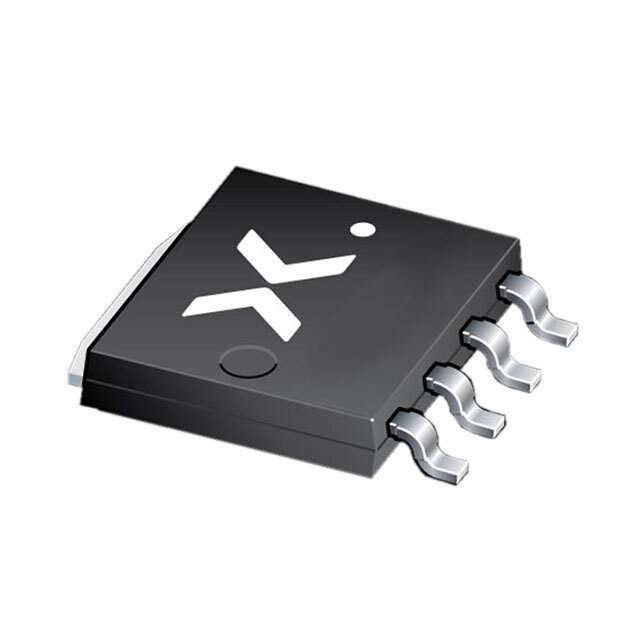

PSMN0R9-30YLDX Real Image
Same model may have multiple batches, images only for reference.

PSMN0R9-30YLDX

Part No PSMN0R9-30YLDX
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 300A LFPAK56 / N-Channel 30 V 300A (Tc) 291W Surface Mount LFPAK56; Power-SO8
Datasheet
PSMN0R9-30YLDX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 300A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 0.87mOhm @ 25A, 10V
Vgs(th) (Max) @ Id 2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 109 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 7668 pF @ 15 V
Power Dissipation (Max) 291W
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Surface Mount
Supplier Device Package LFPAK56; Power-SO8
Case / Package SOT-1023, 4-LFPAK
Base Product Number PSMN0R9
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number 568-11554-6,568-11554-6-ND,568-11554-1,568-11554-2,934068233115,568-11554-1-ND,1727-1858-6,568-11554-2-ND,1727-1858-2,PSMN0R9-30YLDX-ND,1727-1858-1
Standard Package 1,500
Win Source Part Number 1325300-PSMN0R9-30YLDX
Ultra Librarian 3D Model Ultra Librarian PSMN0R9-30YLDX CAD Model

Description

The Nexperia USA Inc. PSMN0R9-30YLDX is a surface mount N-channel MOSFET transistor that is ideal for use in discrete semiconductor products.

  • Drain to Source Voltage: 30 V
  • Continuous Drain Current: 300A (Tc)
  • Maximum Rds On: 0.87mOhm @ 25A and 10V
  • Gate Threshold Voltage: 2.2V @ 1mA
  • Maximum Power Dissipation: 291W
  • Package: LFPAK56; Power-SO8
  • Operating Temperature Range: -55°C to 150°C
