The Nexperia USA Inc. NX138BKWX is an N-channel MOSFET transistor designed for use in discrete semiconductor products.

• Drain-to-Source Voltage (Vdss): 60V
• Continuous Drain Current (Id): 210mA (Ta) @ 25°C
• Maximum On-Resistance (Rds On): 3.5Ohm @ 200mA and 10V
• Maximum Gate Threshold Voltage (Vgs(th)): 1.5V @ 250μA
• Maximum Power Dissipation: 266mW (Ta) or 1.33W (Tc)

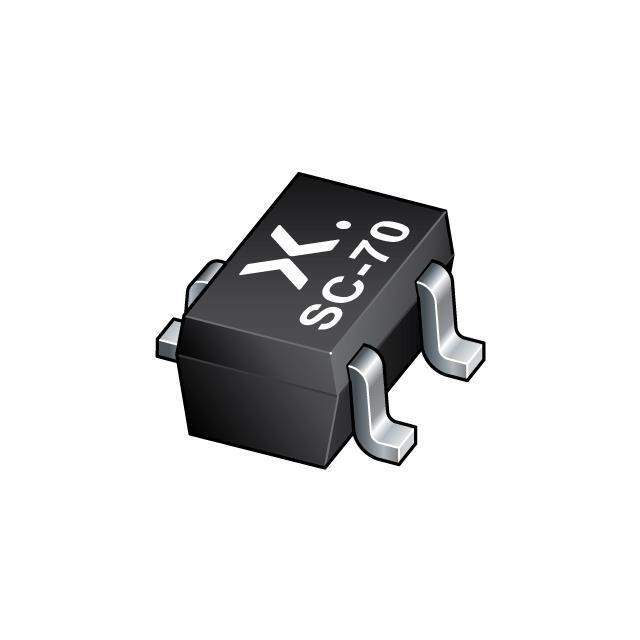

• Package: SC-70, SOT-323
• Gate Charge (Qg): 0.7nC @ 10V
• Input Capacitance (Ciss): 20pF @ 30V
• Maximum Voltage: ±20V
• Operating Temperature Range: -55°C to 150°C (TJ)
