The NX7002BKMYL is an N-Channel MOSFET transistor from Nexperia USA Inc.

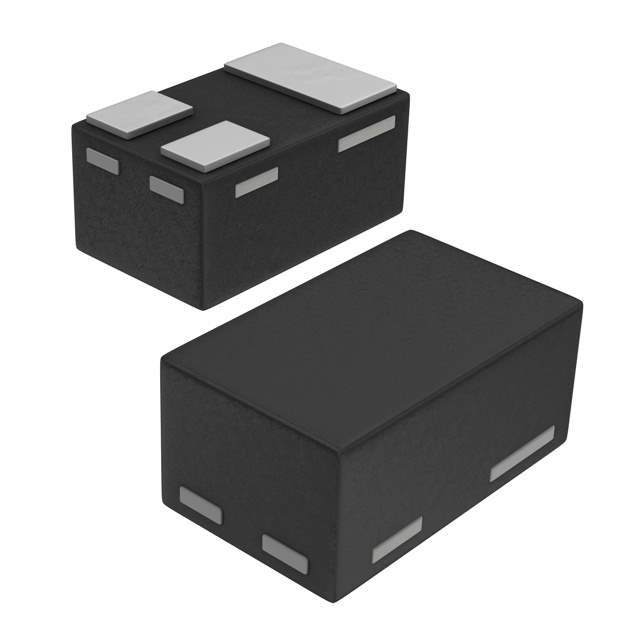

• Package: SC-101, SOT-883
• Drain to Source Voltage (Vdss): 60 V
• Current Continuous Drain (Id) @ 25°C: 350mA (Ta)
• Rds on (Max) @ Id, Vgs: 2.8Ohm @ 200mA, 10V
• Power Dissipation (Max): 350mW (Ta), 3.1W (Tc)
• Gate Charge (Qg) (Max) @ Vgs: 1 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 23.6 pF @ 10 V
• Operating Temperature Range: -55°C to 150°C (TJ)
• Ideal For Use In: Discrete Semiconductor Products, Transistors - FETs, MOSFETs - Single, and TrenchMOS™ series applications
