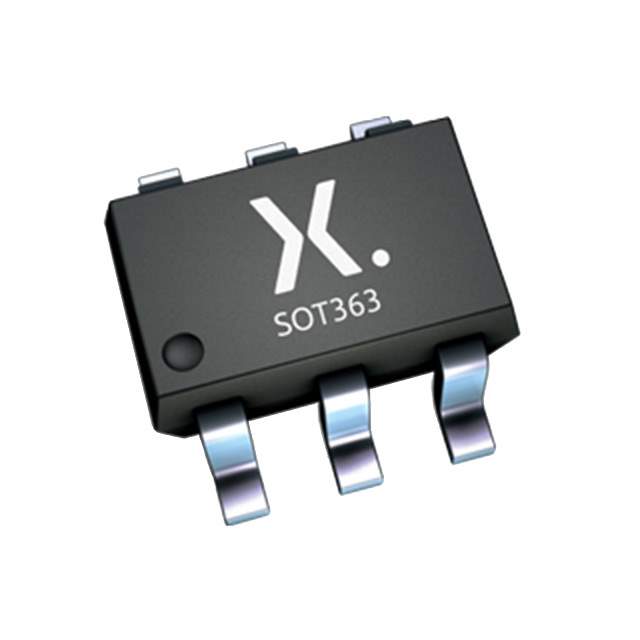

NX7002BKSX

Name: NX7002BKSX
Brand: Nexperia USA Inc.
SKU: 1019048
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NX7002BKSX
Manufacturer	Nexperia USA Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 60V 270MA 6TSSOP / N-Channel 60 V 270mA (Ta) 310mW (Ta), 1.67W (Tc) Surface Mount 6-TSSOP
Datasheet	NX7002BKSX Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Nexperia USA Inc.
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	270mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	2.8Ohm @ 200mA, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	23.6 pF @ 10 V
Power Dissipation (Max)	310mW (Ta), 1.67W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	6-TSSOP
Package / Case	6-TSSOP, SC-88, SOT-363
Base Product Number	NX7002
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	1727-2664-1,1727-2664-2,934068619115,1727-2664-6,568-13169-1,568-13169-2,568-13169-2-ND,568-13169-6,568-13169-1-ND,568-13169-6-ND,NX7002BKS-ND,NX7002BKSX-ND,NX7002BKS
Standard Package	3,000
Win Source Part Number	1019048-NX7002BKSX
Ultra Librarian 3D Model	Ultra Librarian NX7002BKSX CAD Model

Alternative Products

Description

The Nexperia USA Inc. NX7002BKSX is an N-channel MOSFET transistor.

Package: Tape and Reel
Standard Package: 3,000
Drain to Source Voltage: 60V
Continuous Drain Current: 270mA @ Ta
Maximum On-Resistance: 2.8Ohm @ 200mA and 10V
Gate-Source Threshold Voltage: 2.1V @ 250µA
Power Dissipation: 310mW @ Ta and 1.67W @ Tc
Gate Charge: 1 nC @ 10V
Input Capacitance: 23.6 pF @ 10V
