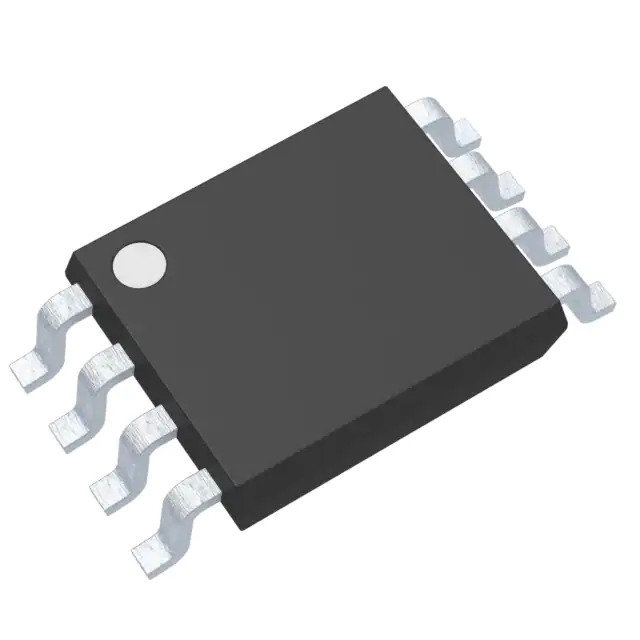

Same model may have multiple batches, images only for reference.
NXS0102DCH Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

NXS0102DCH

Part No NXS0102DCH
Manufacturer Nexperia USA Inc.
Catalog Logic - Translators, Level Shifters
Description IC TRANSLTR BIDIRECTIONAL 8VSSOP
Datasheet
NXS0102DCH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Translators, Level Shifters
Mfr Nexperia USA Inc.
Series -
Package Tape & Reel
Product Status Active
Translator Type Voltage Level
Channel Type Bidirectional
Number of Circuits 1
Channels per Circuit 2
Voltage - VCCA 1.65 V ~ 3.6 V
Voltage - VCCB 2.3 V ~ 5.5 V
Input Signal -
Output Signal -
Output Type Open Drain
Data Rate 24Mbps
Temperature Range - Operating -40°C ~ 125°C (TA)
Features -
Mounting Type Surface Mount
Package / Case 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package 8-VSSOP
Base Product Number NXS0102
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1371025-NXS0102DCH
Ultra Librarian 3D Model Ultra Librarian NXS0102DCH CAD Model

Description

The NXS0102DCH is a voltage level both industrial and automotive applications. This IC features bidirectional channels and has a total of 2 circuits. It has a voltage range of 1.65V to 3.6V for VCCA and 2.3V to 5.5V for VCCB. The NXS0102DCH comes in an 8-VFSOP package with a width of 2.30mm. It is surface mountable and supplied in tape and reel packaging. With its high data rate of 24Mbps and reliable performance, the NXS0102DCH is an excellent choice for level shifting and voltage translation in various electronic systems.

  • Temperature Range: -40°C to 125°C
  • Channels: Bidirectional
  • Circuits: 2
  • Voltage Range (VCCA): 1.65V to 3.6V
  • Voltage Range (VCCB): 2.3V to 5.5V
  • Package: 8-VFSOP
  • Width: 2.30mm
  • Mounting Type: Surface Mount
  • Data Rate: 24Mbps
