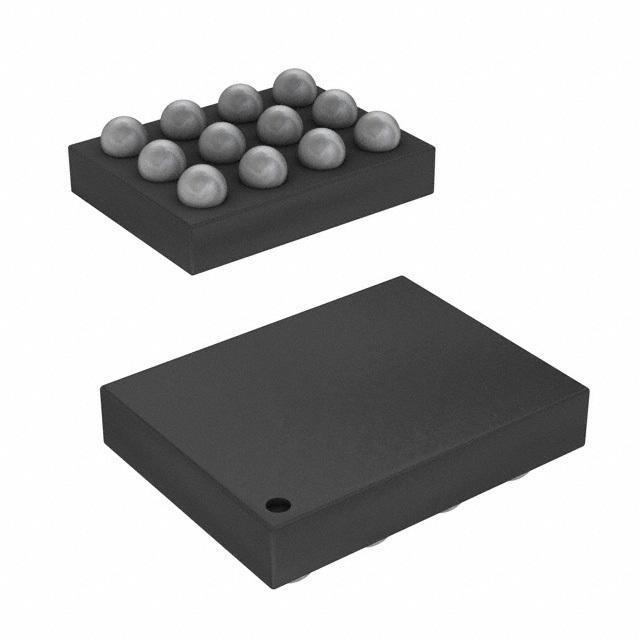

The NTB0104UK,012 is a versatile, high-performance bi-directional level translator from NXP Semiconductors designed to address the need for a reliable way to transfer signals between different voltage domains. This product is part of the NXP's translation devices that are essential in applications where interface compatibility is necessary between various components operating at different voltage levels.

Key Features

• Bi-Directional Interface: The NTB0104UK,012 can transfer data in both directions, from a high voltage (HV) to a low voltage (LV) and vice versa, without the need for direction control, making it extremely flexible for bidirectional communication.
• Voltage Level Translation: It supports voltage level translation from 1.0V to 3.6V on the LV side and from 1.8V to 5.5V on the HV side, accommodating a wide range of common logic levels.
• Low Power Consumption: Designed for low power operation, this level translator consumes minimal power, making it suitable for battery-powered and power-sensitive applications.
• High-Speed Operation: With its capability to support high-speed signal transfer, it is ideal for applications requiring fast data rates.
• Auto Direction Sensing: The automatic direction sensing feature of the NTB0104UK,012 eliminates the need for additional circuitry to control the direction of data flow, simplifying design and reducing component count.

Applications

The NTB0104UK,012 is used in a variety of applications where interfacing between different voltage domains is required. This includes, but is not limited to:

• Mobile Devices
• Computers and Peripherals
• Consumer Electronics
• Microcontroller-based Systems
• Data Communication Systems

Quality and Reliability

NXP Semiconductors is known for its commitment to quality and reliability, and the NTB0104UK,012 is no exception. It is built to meet the high standards expected from NXP products, ensuring stable performance and longevity in a wide range of operating conditions.

Environmental Considerations

The NTB0104UK,012 is designed with environmental considerations in mind. It is compliant with RoHS regulations, which restricts the use of certain hazardous substances in electronic equipment, making this product a responsible choice for environmentally conscious organizations.
