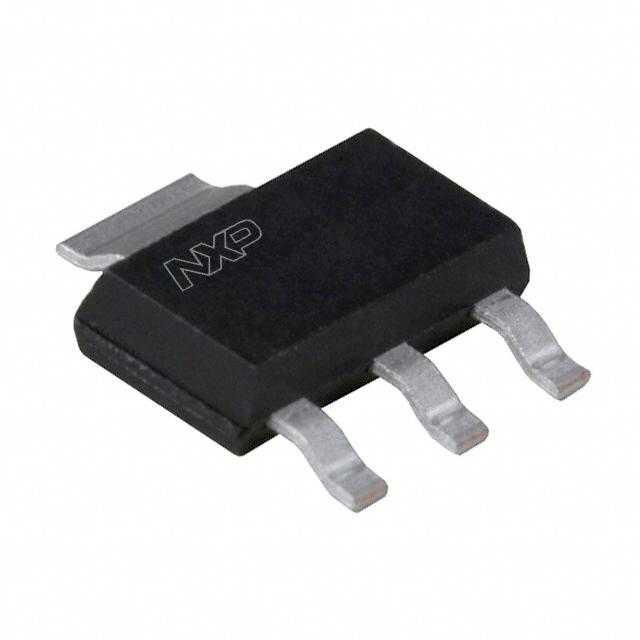

PBHV9540Z,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PBHV9540Z,115

Part No PBHV9540Z,115
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Single
Description TRANS PNP 400V 0.5A SOT223
Datasheet
PBHV9540Z,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Transistor Polarity PNP
Maximum Current Collector 500mA
VCEO Maximum Collector-Emitter Breakdown Voltage 400V
Max Vce (sat) 320mV @ 100mA, 500mA
Collector Cut-off Current(Max) 100nA
Typical Gain (hFE) (Min) 80 @ 300mA, 10V
Maximum Power Dissipation 1.45W
Frequency - Transition 30MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-223
Win Source Part Number 1086355-PBHV9540Z,115
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PBHV9540Z,115 CAD Model

Description

The PBHV9540Z,115 is an SMD PNP transistor that comes in a SOT-223 case/package and is manufactured by Nexperia.

  • Manufacturer: Nexperia
  • Product Name: PBHV9540Z,115
  • Type: SMD PNP Transistor
  • Package: SOT-223
  • Maximum Collector-Emitter Breakdown Voltage: 400V
  • Maximum Current Collector: 500mA
  • Maximum Power Dissipation: 1.45W
  • Typical Gain (hFE): 80 @ 300mA, 10V
  • Collector Cut-Off Current (Max): 100nA
  • Frequency Transition: 30MHz
  • Transistor Polarity: PNP
  • Vce (sat): 320mV @ 100mA and 500mA
  • Operating Temperature Range: 150°C
  • Product Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Limited
