Same model may have multiple batches, images only for reference.

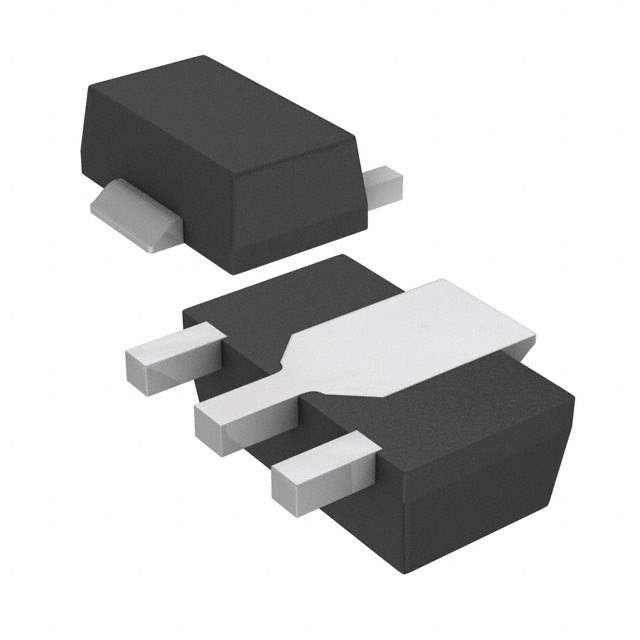

PBSS4360XX Real Image
Same model may have multiple batches, images only for reference.

PBSS4360XX

Part No PBSS4360XX
Manufacturer Nexperia USA Inc.
Catalog RF Transistors (BJT)
Description TRANS NPN 60V 3A SOT89  /  Bipolar (BJT) Transistor NPN 60 V 3 A 75MHz 1.35 W Surface Mount SOT-89
Datasheet
PBSS4360XX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Transistor Type NPN
Current - Collector (Ic) (Max) 3 A
Voltage - Collector Emitter Breakdown (Max) 60 V
Vce Saturation (Max) @ Ib, Ic 400mV @ 3A, 300mA
Current - Collector Cutoff (Max) 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce 75 @ 3A, 5V
Power - Max 1.35 W
Frequency - Transition 75MHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting SMD (SMT)
Package / Case TO-243AA
Supplier Device Package SOT-89
Base Product Number PBSS4360
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0075
Other Names 934660028115,1727-7400-1,1727-7400-2,1727-7400-6
Standard Package 1,000
Win Source Part Number 1083953-PBSS4360XX
Ultra Librarian 3D Model Ultra Librarian PBSS4360XX CAD Model

Description

The PBSS4360XX is an NPN bipolar transistor designed for use in automotive and other high-reliability applications.

  • Collector-Emitter Voltage: 60V (Max)
  • Collector Current: 3A (Max)
  • Applications: Switching and Amplification Circuits
  • Package: TO-243AA
  • Packaging: Tape and Reel
  • DC Current Gain: 75 @ 3A and 5V
  • Saturation Voltage: 400mV @ 3A and 300mA
