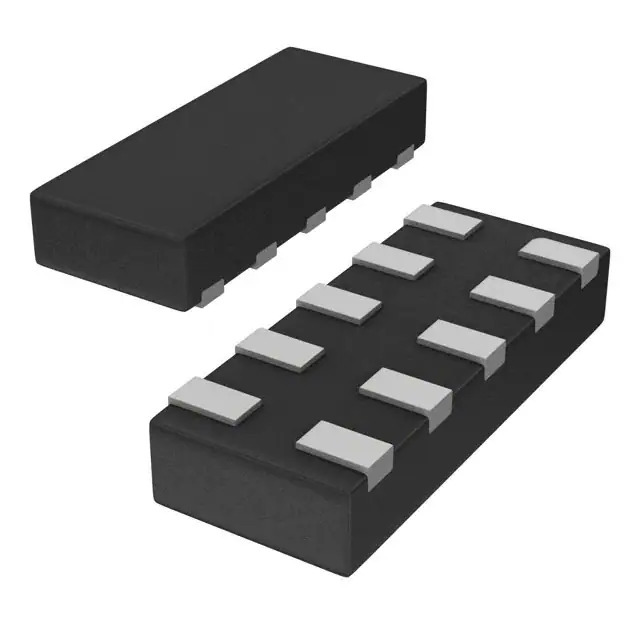

PHDMI2AB4Z Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PHDMI2AB4Z

Part No PHDMI2AB4Z
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VC DFN2510A-10 / 5V (Typ) Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510A-10
Datasheet
PHDMI2AB4Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Nexperia USA Inc.
Series -
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) -
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 5V (Typ)
Current - Peak Pulse (10/1000µs) 7A (8/20µs)
Power - Peak Pulse -
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 0.2pF @ 1MHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 10-XFDFN
Supplier Device Package DFN2510A-10
Base Product Number PHDMI2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362416-PHDMI2AB4Z
Ultra Librarian 3D Model Ultra Librarian PHDMI2AB4Z CAD Model

Description

The PHDMI2AB4Z is a Zener type transient voltage suppressor (TVS) diode from Nexperia USA Inc.

  • Function: Circuit Protection
  • Reverse Standoff Voltage: 6V
  • Clamping Voltage: 5V (typical) @ 7A
  • Number of Channels: 4 unidirectional
  • Mounting Type: Surface Mount
  • Package: 10-XFDFN
  • Capacitance: 0.2pF @ 1MHz
  • REACH Affected: No
  • ECCN Classification: EAR99
  • Product Status: Active
  • Packaging: Tape and Reel
