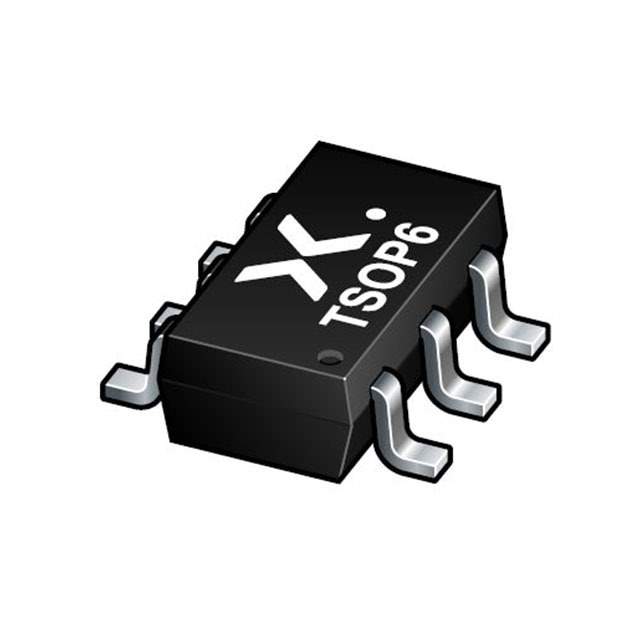

PMN30XPAX Real Image
Same model may have multiple batches, images only for reference.

PMN30XPAX

Part No PMN30XPAX
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 5.2A 6TSOP  /  P-Channel 20 V 5.2A (Ta) 660mW (Ta), 7.5W (Tc) Surface Mount 6-TSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101, TrenchMOS™
Package Tape & Reel
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 20 V
Current - Continuous Drain (Id) @ 25°C 5.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 8V
Rds On (Max) @ Id, Vgs 33mOhm @ 5.2A, 8V
Vgs(th) (Max) @ Id 1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 16 nC @ 4.5 V
Vgs (Max) ±12V
Input Capacitance (Ciss) (Max) @ Vds 1039 pF @ 10 V
Power Dissipation (Max) 660mW (Ta), 7.5W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Supplier Device Package 6-TSOP
Package / Case SC-74, SOT-457
Base Product Number PMN30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names 1727-PMN30XPAXDKR,934661109115,1727-PMN30XPAXTR,1727-PMN30XPAXCT
Standard Package 3,000
Win Source Part Number 976367-PMN30XPAX
Ultra Librarian 3D Model Ultra Librarian PMN30XPAX CAD Model

Description

The PMN30XPAX is a P-channel MOSFET transistor with a drain-source voltage of 20V and a continuous drain current of 5.2A @ 25°C.

  • Drain-Source Voltage: 20V
  • Continuous Drain Current: 5.2A @ 25°C
  • Maximum Rds On: 33mOhm @ 5.2A and 8V
  • Maximum Gate-Source Voltage: ±12V
  • Maximum Power Dissipation: 660mW @ Ta and 7.5W @ Tc
  • Gate Charge (Qg): 16 nC @ 4.5V
  • Input Capacitance (Ciss): 1039 pF @ 10V
  • Applications: Automotive applications
  • Package: Tape and reel
  • Standard Package: 3000
  • Drive Voltage: 2.5V and 8V for maximum Rds On and minimum Rds On respectively
