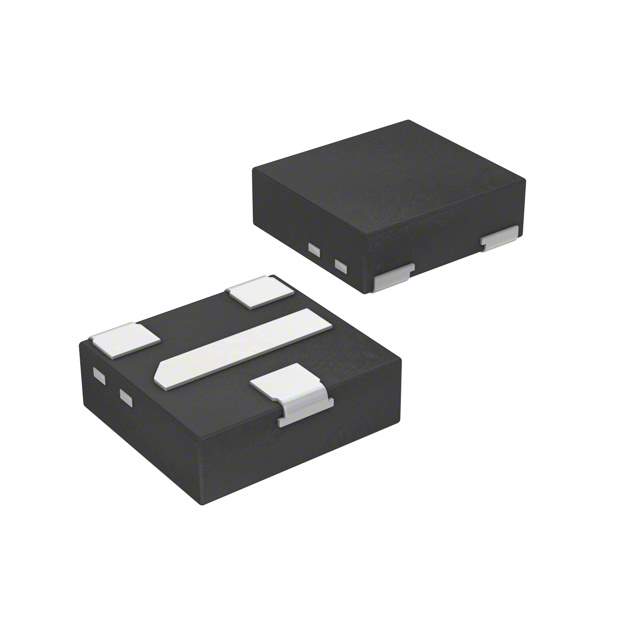

PMXB56ENZ Real Image
Same model may have multiple batches, images only for reference.

PMXB56ENZ

Part No PMXB56ENZ
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 3.2A DFN1010D-3G
Datasheet
PMXB56ENZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 3.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2V @ 250μA
Max Gate Charge 6.3nC @ 10V
Max Input Capacitance 209pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 400mW (Ta), 8.33W (Tc)
Maximum Rds On at Id,Vgs 55 mOhm @ 3.2A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DFN1010D-3
Dimension 3-XDFN Exposed Pad
Win Source Part Number 1089811-PMXB56ENZ
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PMXB56ENZ CAD Model

Description

The PMXB56ENZ is an N-channel MOSFET manufactured by Nexperia USA Inc.

  • Package: DFN1010D-3 with exposed pad
  • Maximum Power Dissipation: 400mW (Ta), 8.33W (Tc)
  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current: 3.2A @ 25°C
  • Gate-Source Threshold Voltage: 2V @ 250μA
  • Maximum Gate Charge: 6.3nC @ 10V
  • Input Capacitance: 209pF @ 15V
  • Supply and Demand: sufficient
