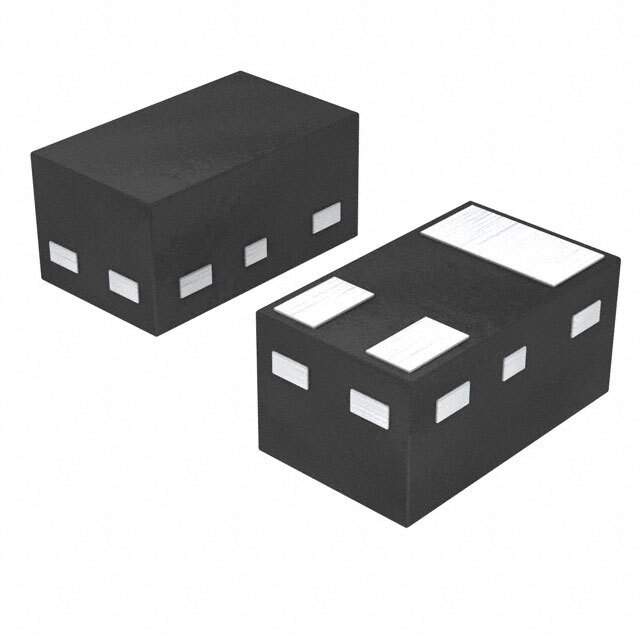

PMZB290UNE2YL

Part No PMZB290UNE2YL
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 20V 1.2A XQFN3
Datasheet
PMZB290UNE2YL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 1.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Gate-Source Threshold Voltage 950mV @ 250μA
Max Gate Charge 1.4nC @ 4.5V
Max Input Capacitance 46pF @ 10V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 350mW (Ta), 5.43W (Tc)
Maximum Rds On at Id,Vgs 320 mOhm @ 1.2A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DFN1006B-3
Dimension 3-XFDFN
Win Source Part Number 1089821-PMZB290UNE2YL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PMZB290UNE2YL CAD Model

Description

The Nexperia PMZB290UNE2YL is a N-channel MOSFET transistor designed for use in discrete semiconductor products.

  • Category: Discrete Semiconductor Products
  • Channel Type: N-Channel
  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current: 1.2A @ 25°C
  • Maximum Rds On @ Id, Vgs: 320 mOhm @ 1.2A and 4.5V
  • Gate-Source Threshold Voltage: 950mV @ 250μA
  • Maximum Gate Charge: 1.4nC @ 4.5V
  • Maximum Input Capacitance: 46pF @ 10V
  • Maximum Gate-Source Voltage: ±8V
  • Package: DFN1006B-3
  • Operating Temperature Range: -55°C to 150°C (TJ)
