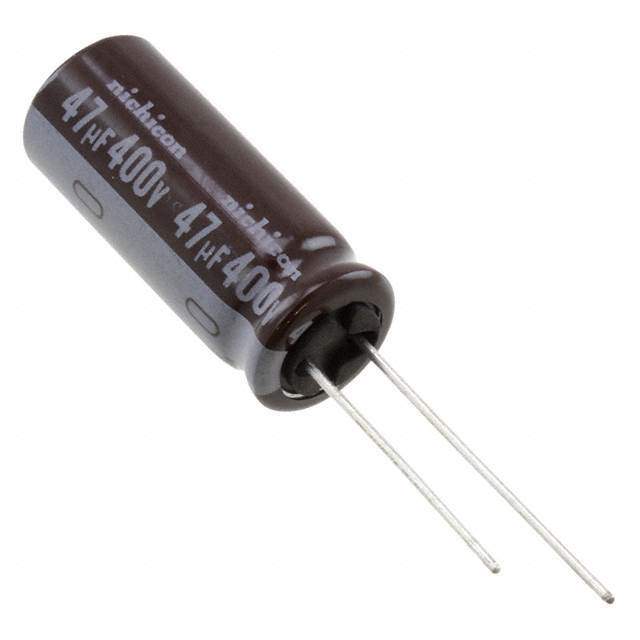

UCY2G470MHD6 Real Image
Same model may have multiple batches, images only for reference.

UCY2G470MHD6

Part No UCY2G470MHD6
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 400V RADIAL / 47 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Nichicon
Packaging Bulk
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 400 V
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 510 mA @ 120 Hz
Ripple Current @ High Frequency 1.02 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.299" (33.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 493-6890
Standard Package 600
Win Source Part Number 1329223-UCY2G470MHD6
Ultra Librarian 3D Model Ultra Librarian UCY2G470MHD6 CAD Model

Description

The Nichicon 1329223-UCY2G470MHD6 is a high-quality aluminum electrolytic capacitor, designed for general-purpose applications.

  • Capacitance: 47 µF
  • Voltage Rating: 400 V
  • Tolerance: ±20%
  • Package: Radial, Can
  • Diameter: 0.492 inches (12.50mm)
  • Height: 1.299 inches (33.00mm)
  • Mounting Style: Through-Hole
  • Lead Spacing: 0.197 inches (5.00mm)
  • Lifetime: 12000 hours @ 105°C
  • Polarized: Yes
  • Operating Temperature: -40°C to 105°C
  • ROHS3 Compliant: Yes
  • Ripple Current: 510 mA @ 120 Hz
  • Ripple Current: 1.02 A @ 100 kHz
