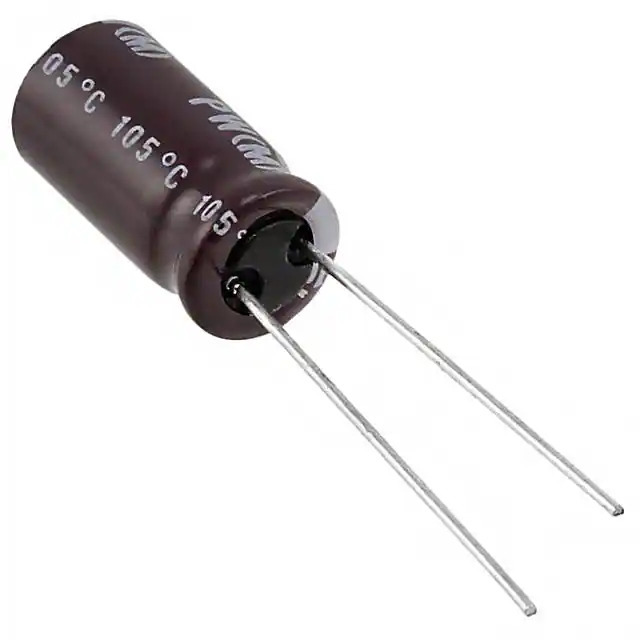

Same model may have multiple batches, images only for reference.
UPW1A681MPD6TA Nichicon
Same model may have multiple batches, images only for reference.

UPW1A681MPD6TA

Part No UPW1A681MPD6TA
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 10V RADIAL / 680 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Datasheet
UPW1A681MPD6TA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Tape & Box (TB)
Product Status Not For New Designs
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 547.5 mA @ 120 Hz
Ripple Current @ High Frequency 730 mA @ 100 kHz
Impedance 85 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.650" (16.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358098-UPW1A681MPD6TA
Ultra Librarian 3D Model Ultra Librarian UPW1A681MPD6TA CAD Model

Description

The UPW series aluminum electrolytic capacitor is a high-quality component manufactured by Nichicon.

  • Manufacturer: Nichicon
  • Series: UPW
  • Capacitance: 680 μF
  • Voltage Rating: 10 V
  • Tolerance: ±20%
  • Application: General Purpose
  • Ripple Current (Low Frequency): 547.5 mA @ 120 Hz
  • Ripple Current (High Frequency): 730 mA @ 100 kHz
  • Lead Spacing: 0.138" (3.50mm)
  • Size: 0.315" (8.00mm) Diameter
  • Mounting Type: Through-Hole
  • Height: 0.650" (16.50mm)
  • Lifetime: 3000 hours @ 105°C
  • Polarization: Polar
  • Packaging: Tape and Box (TB)
  • Status: Not for New Designs
  • REACH: Unaffected
  • ECCN: EAR99
