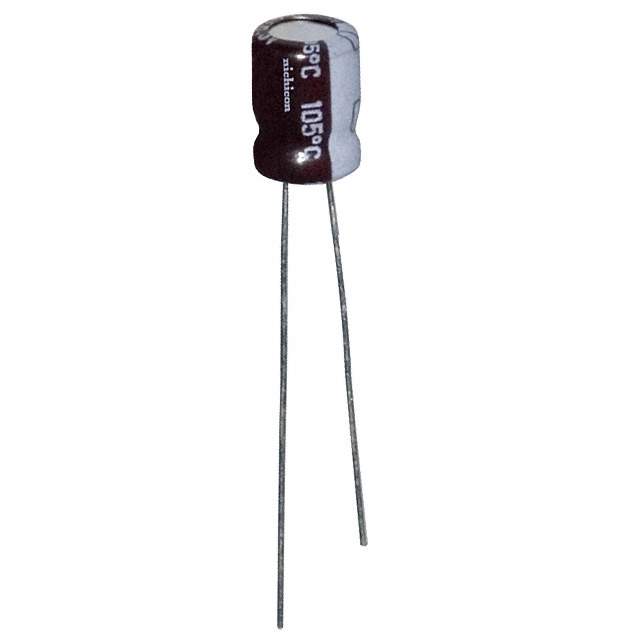

Same model may have multiple batches, images only for reference.

UPW1E220MDD6

Get a Quote

Part No	UPW1E220MDD6
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 25V RADIAL / 22 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Nichicon
Packaging	Bulk
Product Status	Obsolete
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	25 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	36 mA @ 120 Hz
Impedance	950 mOhms
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.276" (7.00mm)
Mounting	Through Hole
Case / Package	Radial, Can
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	493-1812
Standard Package	200
Win Source Part Number	1328643-UPW1E220MDD6
Ultra Librarian 3D Model	Ultra Librarian UPW1E220MDD6 CAD Model

Alternative Products

Description

The Nichicon UPW1E220MDD6 is an obsolete electronic component that is suitable for use in a variety of applications, including power supplies, DC-DC converters, and other electronic devices.

Manufacturer: Nichicon
Status: Obsolete
Applications: Power supplies, DC-DC converters, and other electronic devices
Type: Aluminum Electrolytic Capacitor
Features: High capacitance, a low ESR, and a long lifetime
Suitable For: Space-constrained applications
Mounting Style: Through-hole
Ideal for: Consumer and industrial applications
