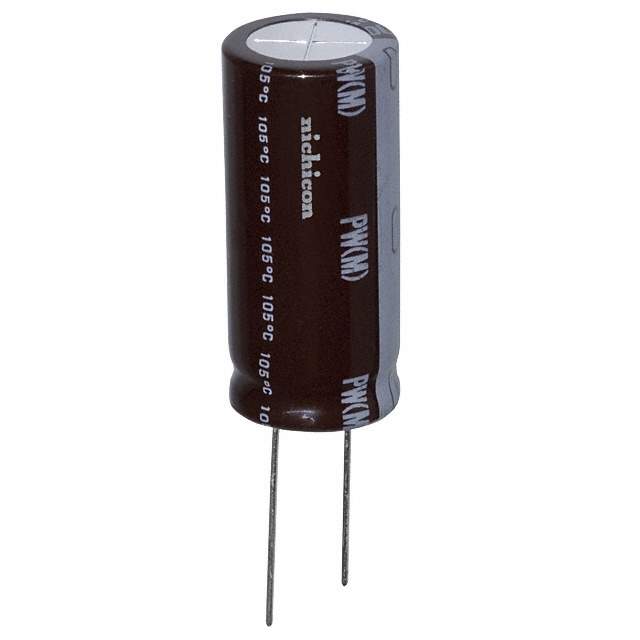

UPW1J222MHD Real Image
Same model may have multiple batches, images only for reference.

UPW1J222MHD

Part No UPW1J222MHD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 63V RADIAL  /  2200 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Not For New Designs
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 8000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.72 A @ 120 Hz
Ripple Current @ High Frequency 3.2 A @ 100 kHz
Impedance 28 mOhms
Lead Spacing 0.295" (7.50mm)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.575" (40.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names Q9628604,493-1960
Standard Package 200
Win Source Part Number 998105-UPW1J222MHD
Ultra Librarian 3D Model Ultra Librarian UPW1J222MHD CAD Model

Description

The UPW series aluminum electrolytic capacitor is a general-purpose capacitor that has a capacitance of 2200 µF and a tolerance of ±20%.

  • Series: UPW
  • Type: Aluminum Electrolytic Capacitor
  • Application: General-Purpose
  • Capacitance: 2200 µF
  • Tolerance: ±20%
  • Voltage Rating: 63V
  • Impedance: 28 mOhms
  • Height: 1.575"
  • Lead Spacing: 0.295"
  • Package: Radial, Can
  • Mounting: Through-Hole
  • Temperature Range: -55°C to 105°C
  • Lifetime: 8000 hours @ 105°C
  • Ripple Current: 2.72 A @ 120 Hz and 3.2 A @ 100 kHz
  • Manufacturer: Nichicon
  • Part Number: UPW1J222MHD
  • Packaging: Bulk
