Same model may have multiple batches, images only for reference.

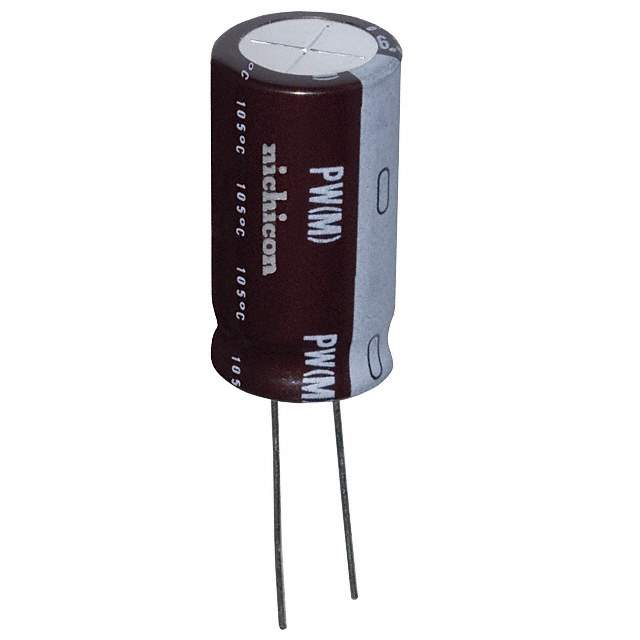

UPW1V222MHD Real Image
Same model may have multiple batches, images only for reference.

UPW1V222MHD

Part No UPW1V222MHD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 35V RADIAL  /  2200 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Not For New Designs
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 8000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.559 A @ 120 Hz
Ripple Current @ High Frequency 3.01 A @ 100 kHz
Impedance 18 mOhms
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.240" (31.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-1879,Q5171937
Standard Package 300
Win Source Part Number 1157168-UPW1V222MHD
Ultra Librarian 3D Model Ultra Librarian UPW1V222MHD CAD Model

Description

The UPW series aluminum electrolytic capacitor from Nichicon is a high-quality general-purpose capacitor designed for use in a variety of electronic applications.

  • Capacitance: 2200 µF
  • Voltage Rating: 35 V
  • Package Style: Radial, can-style
  • Diameter: 0.630 inches (16.00mm)
  • Height: 1.240 inches (31.50mm)
  • Mounting: Through-hole
  • Lifetime: 8000 hours @ 105°C
  • Tolerance: ±20%
  • Impedance: 18 mOhms
  • Ripple Current: 2.559 A @ 120 Hz and 3.01 A @ 100 kHz
  • Supply: Bulk
  • Recommendation: Not recommended for new designs
