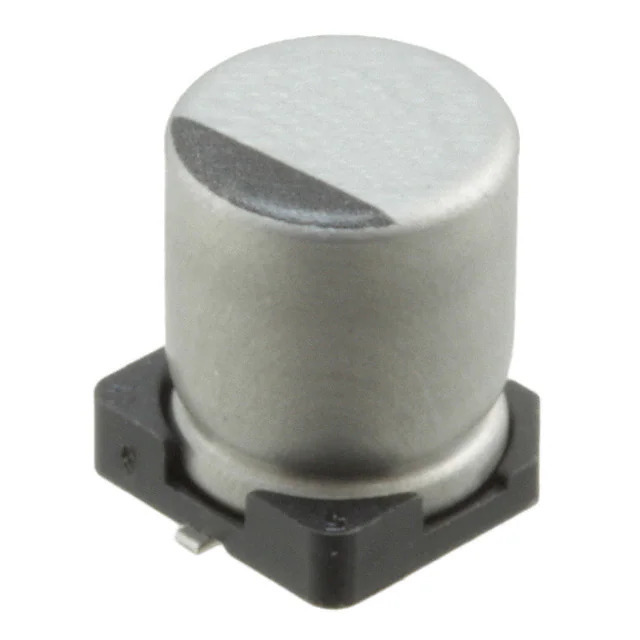

UUR1E101MCL6GS Nichicon
Same model may have multiple batches, images only for reference.

UUR1E101MCL6GS

Part No UUR1E101MCL6GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 25V SMD / 100 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Datasheet
UUR1E101MCL6GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUR
Package Tape & Reel
Product Status Last Time Buy
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization -
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 143 mA @ 120 Hz
Ripple Current @ High Frequency 185.9 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360197-UUR1E101MCL6GS
Ultra Librarian 3D Model Ultra Librarian UUR1E101MCL6GS CAD Model

Description

The UUR series aluminum electrolytic capacitor by Nichicon is a high-quality component designed for general-purpose applications.

  • Capacitance: 100 μF
  • Voltage Rating: 25 V
  • Temperature Range: -40°C to 85°C
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 143 mA @ 120 Hz
  • Ripple Current (High Frequency): 185.9 mA @ 10 kHz
  • Size (Diameter): 0.248" (6.30mm)
  • Size (Seated Height): 0.315" (8.00mm)
  • Mounting Style: Surface Mount
  • Packaging: Tape and Reel
  • Lifetime: 2000 hours @ 85°C
  • Lifecycle: Last Time Buy
