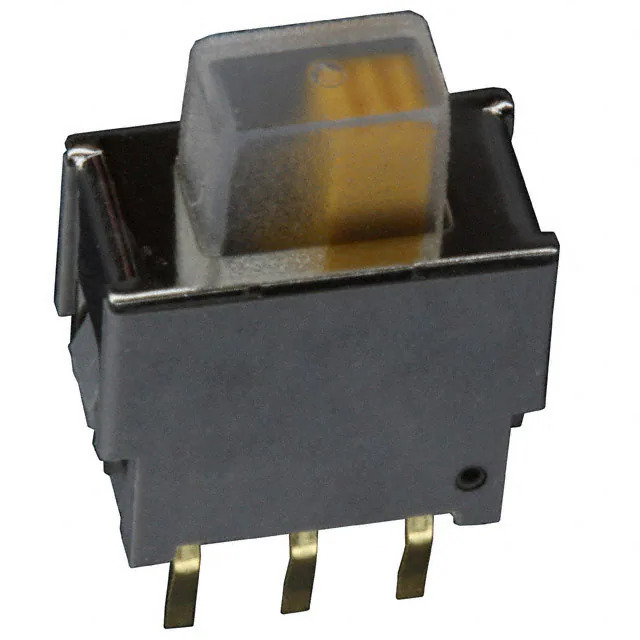

ASE2D-2M-10-Z Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

ASE2D-2M-10-Z

Part No ASE2D-2M-10-Z
Manufacturer Nidec Copal Electronics
Catalog Slide Switches
Description SWITCH SLIDE DPDT 50MA 60V
Datasheet
ASE2D-2M-10-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr Nidec Components Corporation
Series ASE
Package Tray
Product Status Active
Circuit DPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 50mA (AC/DC)
Voltage Rating - AC 60 V
Voltage Rating - DC 60 V
Actuator Type Standard
Actuator Length 2.80mm
Contact Material -
Contact Finish Gold
Mounting Type Through Hole
Termination Style PC Pin
Features Washable
Temperature Range - Operating -20°C ~ 85°C
Actuator Material -
Switch Travel 2.20mm
Mechanical Life -
Electrical Life 10,000 Cycles
Operating Force 70 ~ 500gf
Base Product Number ASE2D-2M
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376308-ASE2D-2M-10-Z
Ultra Librarian 3D Model Ultra Librarian ASE2D-2M-10-Z CAD Model

Description

The Nidec Components Corporation ASE2D-2M-10-Z is a DPDT slide switch designed for through-hole mounting.

  • Current Rating (AC/DC): 50mA
  • Voltage Rating: 60V (AC/DC)
  • Actuator: Standard
  • Contact Finish: Gold
  • Mechanical Life: 10,000 cycles
  • Electrical Life: 10,000 cycles
  • Operating Force: 70 ~ 500gf
  • Switch Travel: 2.20mm
