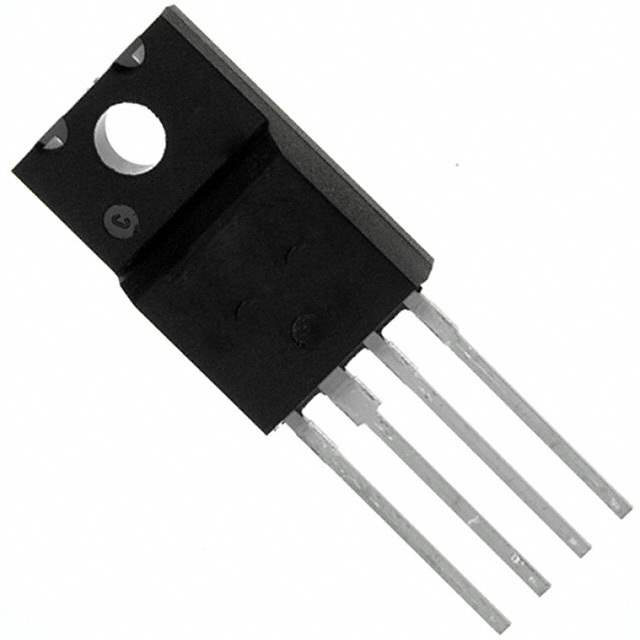

NJM2388F63 Real Image
Same model may have multiple batches, images only for reference.

NJM2388F63

Part No NJM2388F63
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 6.3V 1A TO220F-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Package Tube
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 35V
Voltage - Output (Min/Fixed) 6.3V
Voltage Dropout (Max) 0.5V @ 500mA
Current - Output 1A
Current - Quiescent (Iq) 5 mA
PSRR 67dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature, Over Voltage
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case TO-220-4 Full Pack
Supplier Device Package TO-220F-4
Base Product Number NJM2388
Standard Package 50 pcs
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 254389-NJM2388F63
Ultra Librarian 3D Model Ultra Librarian NJM2388F63 CAD Model

Description

The NJM2388F63 is a linear voltage regulator from Nisshinbo Micro Devices Inc. It is part of the NJM2388 series and comes in a TO-220-4 Full Pack package.

  • Output Type: Fixed
  • Voltage Output: 6.3V
  • Supply Voltage Range: Up to 35V
  • Output Current: Up to 1A
  • Protection: Over current, over temperature, and over voltage
  • Dropout Voltage: 0.5V @ 500mA
  • Suitable for: Power management applications
  • Mounting: Through hole
  • Operating Temperature Range: -40°C to 85°C
  • Product Status: Active
  • Standard Package: 50 pcs
