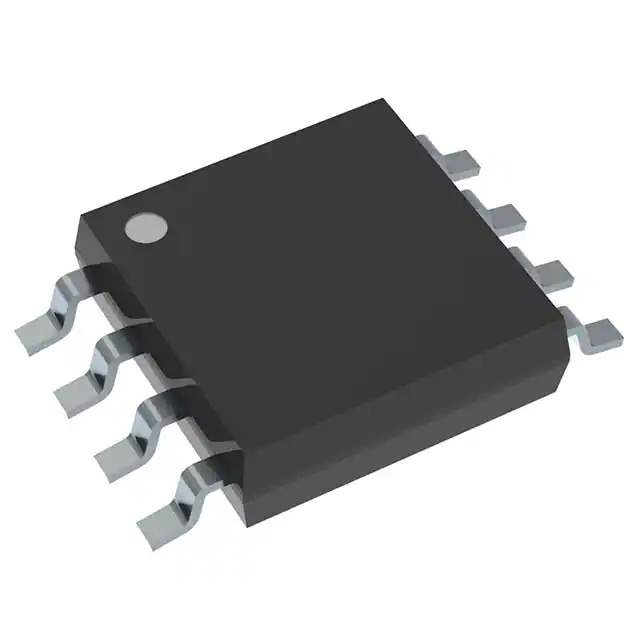

NJM555M Real Image
Same model may have multiple batches, images only for reference.

NJM555M

Part No NJM555M
Manufacturer Nisshinbo Micro Devices Inc.
Catalog Clock/Timing - Programmable Timers and Oscillators
Description IC OSCILLATOR TIMER 8DMP / 555 Type, Timer/Oscillator (Single) IC 8-DMP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Clock/Timing - Programmable Timers and Oscillators
Mfr Nisshinbo Micro Devices Inc.
Package Tube
Product Status Obsolete
Type 555 Type, Timer/Oscillator (Single)
Voltage - Supply 4.5V ~ 16V
Current - Supply 10 mA
Temperature Range - Operating -40°C ~ 85°C
Package / Case 8-SOIC (0.197", 5.00mm Width)
Supplier Device Package 8-DMP
Mounting Type Surface Mount
Standard Package 100 pcs
ECCN OBSOLETE
Win Source Part Number 255743-NJM555M
Ultra Librarian 3D Model Ultra Librarian NJM555M CAD Model

Description

The NJM555M is a programmable timer and oscillator IC from Nisshinbo Micro Devices Inc.

  • Series: 555 Type
  • Application: Clock/timing
  • Package: Tube
  • Standard Package: 100 pieces
  • Supply Voltage Range: 4.5V to 16V
  • Current Consumption: 10 mA
  • Mounting: Surface-mount
  • Temperature Range: -40°C to 85°C
  • Status: Obsolete
  • ECCN Classification: OBSOLETE
