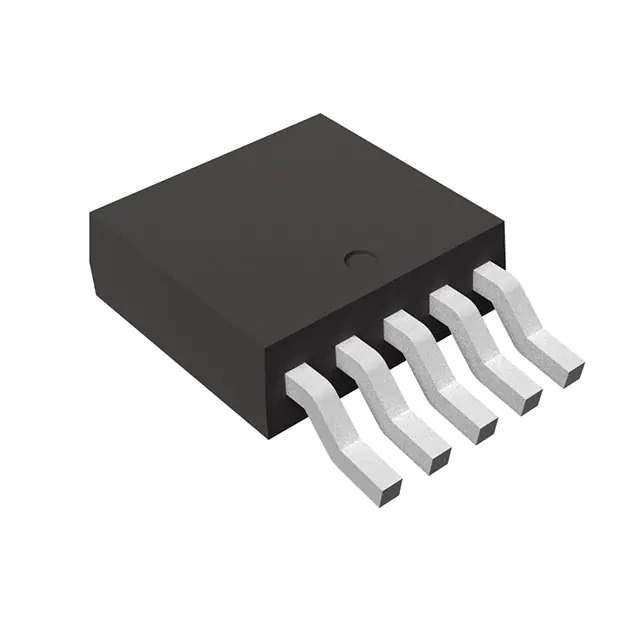

R1501J150B-T1-FE Real Image
Same model may have multiple batches, images only for reference.

R1501J150B-T1-FE

Part No R1501J150B-T1-FE
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 15V 1A TO252-5-P2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series R1501x
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 24V
Voltage - Output (Min/Fixed) 15V
Voltage Dropout (Max) 0.7V @ 1A
Current - Output 1A
Current - Quiescent (Iq) 160 µA
PSRR 60dB (1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Surface Mount
Package / Case TO-252-6, DPak (5 Leads + Tab)
Supplier Device Package TO-252-5-P2
Base Product Number R1501
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 287657-R1501J150B-T1-FE
Ultra Librarian 3D Model Ultra Librarian R1501J150B-T1-FE CAD Model

Description

The R1501J150B-T1-FE is a linear voltage regulator from Nisshinbo Micro Devices Inc.

  • Series: R1501x
  • Output Voltage: 15V (fixed)
  • Maximum Current Output: 1A
  • Input Voltage Range: Up to 24V
  • Package: TO-252-6 (5 leads and a tab)
  • Mounting Type: Surface Mount
  • Features: Enable Control, Over Current Protection, Over Temperature Protection, Short Circuit Protection
  • Quiescent Current: 160μA
  • Product Status: Active
  • Standard Package: 3,000 pieces
