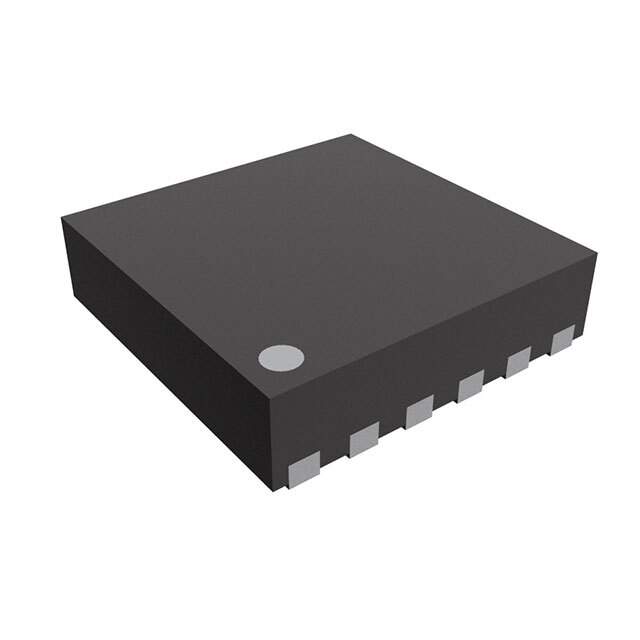

RP506L331H-TR-K Real Image
Same model may have multiple batches, images only for reference.

RP506L331H-TR-K

Part No RP506L331H-TR-K
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description 2A PWM/VFM STEP-DOWN DC/DC CONVE  /  Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 2A 12-WFDFN Exposed Pad
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - DC DC Switching Regulators
Mfr Nisshinbo Micro Devices Inc.
Series Automotive, AEC-Q100, RP506L
Package Tape & Reel (TR)
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Fixed
Number of Outputs 1
Voltage - Input (Min) 2.5V
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 3.3V
Current - Output 2A
Frequency - Switching 2.3MHz
Synchronous Rectifier Yes
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 12-WFDFN Exposed Pad
Supplier Device Package DFN3030-12
Base Product Number RP506
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 2129-RP506L331H-TR-KTR
Standard Package 3,000
Win Source Part Number 1214673-RP506L331H-TR-K
Ultra Librarian 3D Model Ultra Librarian RP506L331H-TR-K CAD Model

Description

The RP506L331H-TR-K from Nisshinbo Micro Devices Inc. is an automotive, AEC-Q100, RP506L series, fixed output, step-down DC-DC switching regulator.

  • Manufacturer: Nisshinbo Micro Devices Inc.
  • Series: RP506L
  • Application: Automotive, AEC-Q100
  • Type: Step-Down DC-DC Switching Regulator
  • Output: Fixed
  • Output Current: 2A
  • Topology: Buck
  • Switching Frequency: 2.3MHz
  • Output Configuration: Positive
  • Voltage Input Range: 2.5V to 5.5V
  • Features: Synchronous Rectifier Enabled
  • Package: 12-WFDFN Exposed Pad
  • Operating Temperature Range: -40°C to 125°C (TA)
