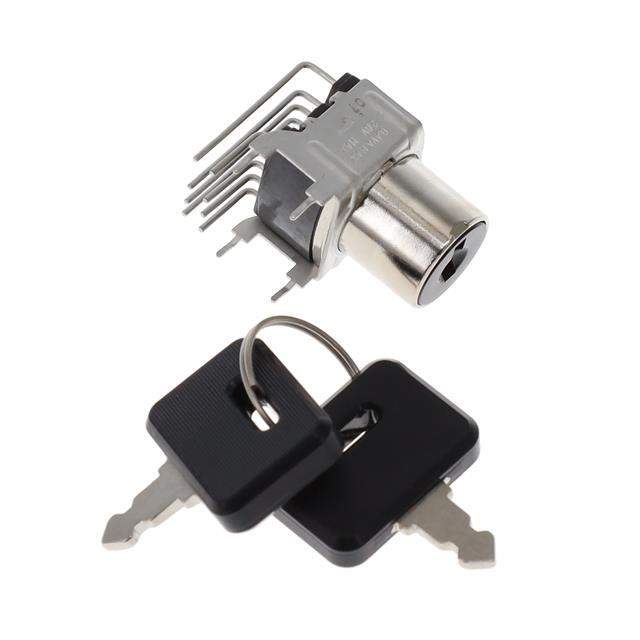

SK24EG30 Real Image
Same model may have multiple batches, images only for reference.

SK24EG30

Part No SK24EG30
Manufacturer NKK Switches
Catalog Navigation Switches, Joystick
Description SWITCH KEYLK 3POS DP3T 0.4VA 28V
Datasheet
SK24EG30 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer NKK Switches
Status Active
Circuit DP3T
Number of Positions 3
Switch Function On-On-On
Contact Timing Non-Shorting (BBM)
Current Rating 0.4VA (AC/DC)
Voltage Rating - AC 28V
Voltage Rating - DC 28V
Actuator Type Flat Key
Key Removable Positions 2 only
Angle of Throw 45°
Contact Finish Gold
Mounting Through Hole, Right Angle
Termination Style PC Pin
Features Process Sealed
Temperature Range - Operating -25°C to 70°C
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Win Source Part Number 1096604-SK24EG30
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SK24EG30 CAD Model

Description

The NKK Switches SK24EG30 is a DP3T switch that has a flat key actuator type. NKK Switches

  • Type: DP3T switch
  • Actuator Type: Flat key
  • Design: Process-sealed
  • Contact Finish: Gold
  • Current Rating: 0.4VA
  • Voltage Rating: 28V AC/DC
  • Mounting Style: Through-hole right-angle
  • Contact Timing: Non-shorting (BBM)
  • Mechanical Life: 30,000 cycles
  • Electrical Life: 10,000 cycles
  • Angle of Throw: 45 degrees
  • Key Removable Positions: Two
  • Operating Temperature Range: -25 to 70 degrees Celsius
