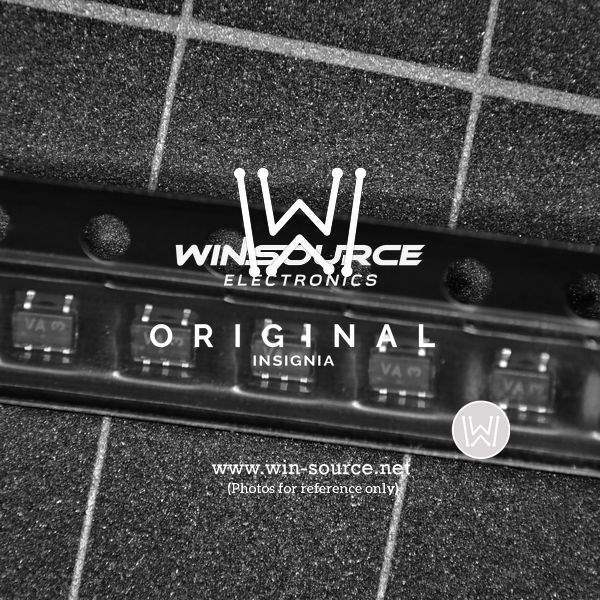

Product Overview: 74LVC1G00GW by NXP Semiconductors

The 74LVC1G00GW is a high-performance, single 2-input NAND gate IC offered by NXP Semiconductors, which is part of their 74LVC family of low-voltage CMOS devices. This logic gate is designed for operation with a power supply range of 1.65V to 5.5V, making it suitable for interfacing with both 3.3V and 5V systems. The device is housed in a compact SOT-353 (SC-88A) surface-mount package that is ideal for space-constrained applications.

Key Features

• Low Power Consumption: The 74LVC1G00GW features a very low static power consumption, with a typical I<sub>CC of only 1 µA, making it an excellent choice for battery-operated and power-sensitive designs.
• High-Speed Operation: Despite its low power usage, the device does not compromise on speed, offering typical propagation delays (t<sub>pd) of only 3.7 ns at a 3.3V supply voltage, ensuring fast and responsive circuitry.
• Broad Supply Voltage Range: With its wide range of operating voltages, the 74LVC1G00GW can be used in various applications without the need for level shifters or special interfacing components.
• 5V Tolerant Inputs: Inputs can tolerate up to 5V even when the device is operating at lower supply voltages, which simplifies the design of mixed-voltage systems.
• High Drive Capability: The output can drive up to 50 mA at the supply voltage of 3.3V, allowing the device to drive larger loads or multiple inputs simultaneously.
• Latch-up Performance: The device has excellent latch-up performance exceeding 100 mA, per JESD 78, Class II, which provides robustness against sudden or temporary current spikes.
• ESD Protection: Enhanced ESD protection is integrated into the design, with input protection exceeding 2000V Human Body Model (HBM) and 200V Machine Model (MM).

Applications

The versatility of the 74LVC1G00GW makes it suitable for a wide array of electronic applications, including:

• Logic circuitry and signal gating
• Power management systems
• Portable and battery-powered devices
• Embedded systems
• Data processing
• Control systems

In conclusion, the 74LVC1G00GW from NXP is a highly reliable and efficient component for designers looking to incorporate a NAND logic function into their systems, with the added benefit of compatibility across a range of voltage levels and robust protection features.
