The 74LVC1G11GW is a high-performance, single 3-input AND gate integrated circuit from NXP Semiconductors. This advanced technology device is designed for use in a wide range of applications that require logical operations. The product is part of the LVC family, which stands for Low-Voltage CMOS, indicating that it operates at a lower voltage with reduced power consumption while maintaining high-speed performance.

Key Features

• Operating Voltage: The 74LVC1G11GW operates at a voltage range of 1.65V to 5.5V, making it compatible with various logic levels and suitable for battery-operated devices.
• High-Speed: With a typical propagation delay of only a few nanoseconds, it ensures fast response times in critical applications.
• Low Power Consumption: The device has been optimized for low power consumption, which is essential for extending battery life in portable applications.
• 5V Tolerant Inputs: Inputs can tolerate a 5V input voltage even when operating at a lower voltage, providing interface flexibility with 5V systems.
• High Noise Immunity: The 74LVC1G11GW possesses a high level of immunity to electrical noise, a critical feature for reliable operation in industrial environments.

Applications

The 74LVC1G11GW is versatile and can be used in a variety of applications, including:

• Logic level translation
• Power management
• Signal gating
• Function generation
• Computing and storage systems

Package Information

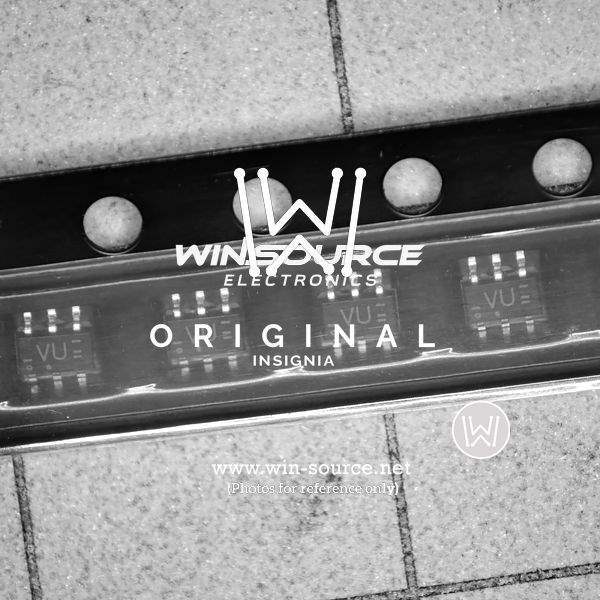

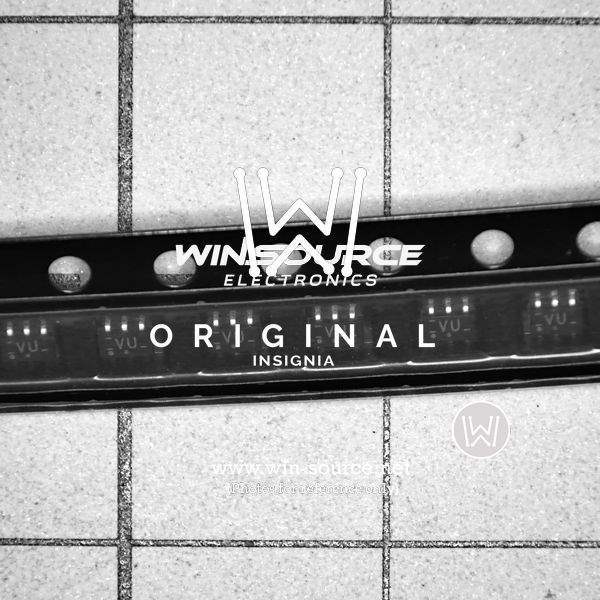

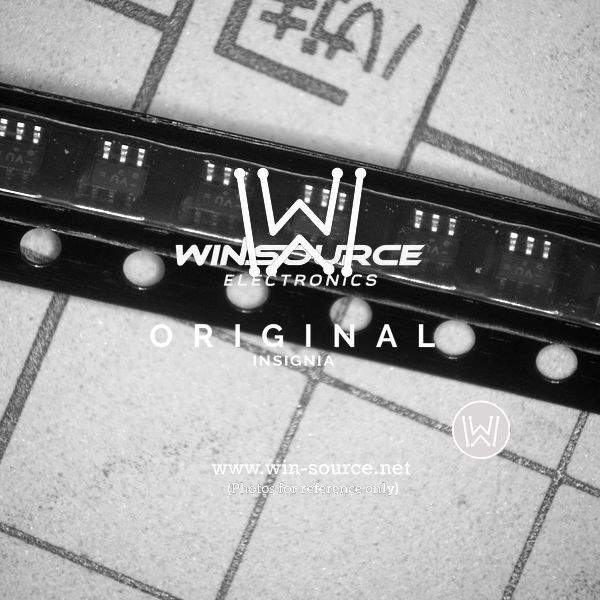

The 74LVC1G11GW comes in a compact SOT353 (SC-88A) surface-mount package, which is ideal for space-constrained applications. Its small footprint and low profile make it suitable for mobile and portable electronics where size and weight are critical considerations.

Quality and Reliability

NXP Semiconductors is known for its commitment to quality and reliability. The 74LVC1G11GW is built to meet the high standards expected of NXP products, ensuring stable and long-lasting performance in a variety of operating conditions.
