The 74LVC273BQ-G is a high-performance, octal D-type flip-flop with reset, designed by NXP Semiconductors. This integrated circuit is part of the LVC family, which operates at a low voltage and is characterized by high-speed performance. The device is suitable for use in a wide range of applications, from industrial to consumer electronics, where reliable data storage or signal synchronization is necessary.

Key Features

• Logic Type: Octal D-type flip-flop with reset
• Operating Voltage: 1.2V to 3.6V, which allows for use in low-voltage applications and compatibility with various logic levels.
• High-Speed Performance: Capable of propagating delays as low as 3.7ns, ensuring swift data processing and signal synchronization.
• Power Dissipation: Features a low power consumption design, which is crucial for battery-powered and energy-sensitive devices.
• Output Capability: Standard outputs capable of driving up to 5V tolerant, which means the device can interface with higher voltage logic levels without additional level shifting.
• Bus Hold Feature: Maintains the last valid input data when no new data is presented, eliminating the need for external pull-up or pull-down resistors.

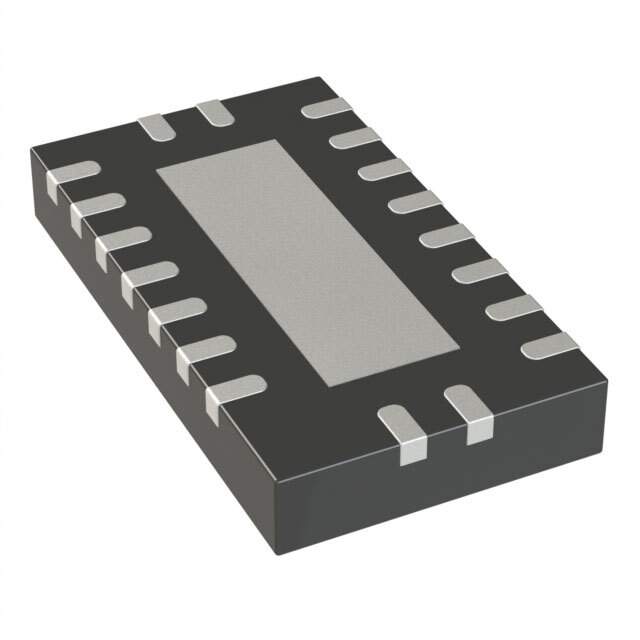

• Package: Available in a DHVQFN20 package, which is a space-saving option ideal for compact PCB layouts.

Applications

The 74LVC273BQ-G is versatile and can be implemented in various digital applications such as:

• Storage registers
• System synchronization
• Data manipulation and buffering
• Interface between different voltage domains

Quality and Reliability

NXP Semiconductors is known for its commitment to quality and reliability, and the 74LVC273BQ-G is no exception. This product is manufactured with the highest standards, ensuring stable performance and longevity in the most demanding conditions.

For detailed specifications, technical documentation, and recommended usage guidelines, customers are encouraged to visit the official NXP Semiconductors website or contact their local sales office. The 74LVC273BQ-G is a testament to NXP's excellence in providing cutting-edge semiconductor solutions.
