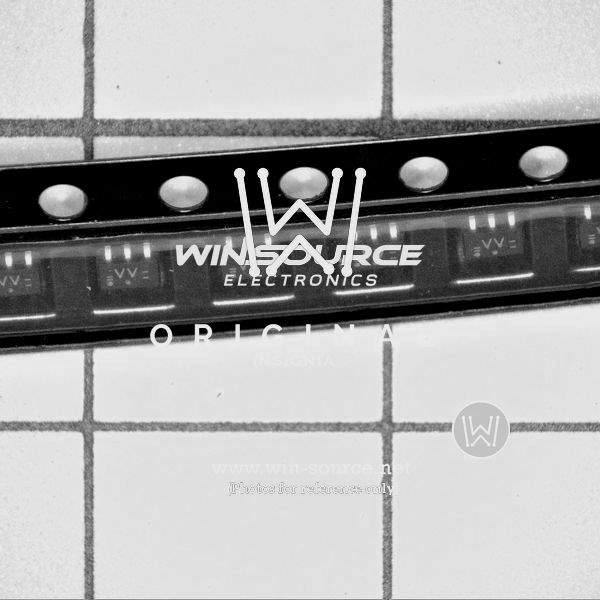

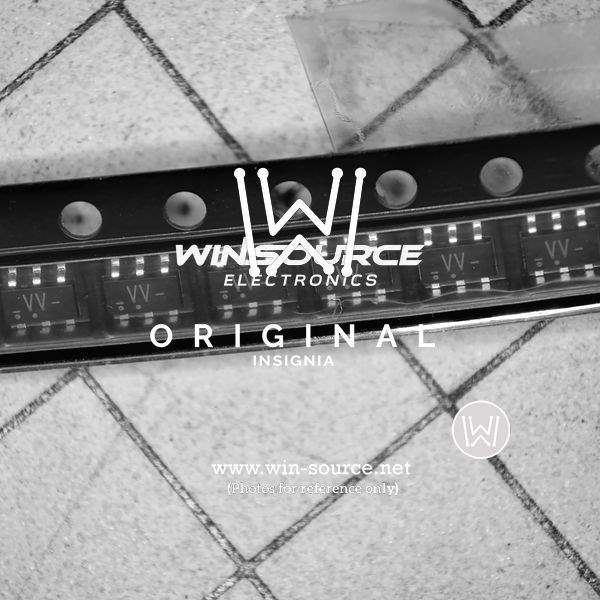

Product Overview: 74LVC2G17GW,125 by NXP Semiconductors

The 74LVC2G17GW,125 is a high-performance, dual non-inverting Schmitt-trigger buffer designed by NXP Semiconductors. This component is part of the 74LVC family, which is known for low-voltage CMOS logic integrated circuits. It is specifically crafted to handle 1.65 V to 5.5 V operating voltages, making it suitable for interfacing with 5V systems and tolerant to 3.3V logic levels.

The device features two individual Schmitt-trigger buffers. These buffers are designed to provide a solution for signal conditioning, particularly in environments where noise is present, by enhancing noise immunity and transforming slowly changing input signals into sharply defined jitter-free output signals. This is particularly useful in applications where signals are transmitted over long distances or through noisy environments.

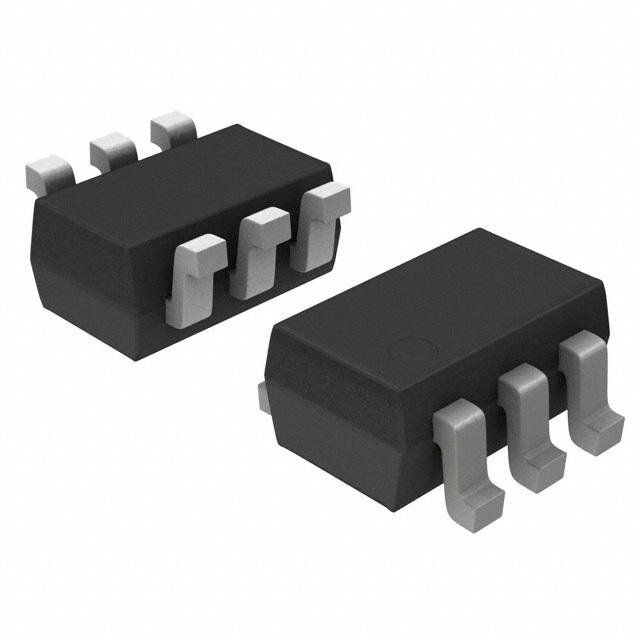

Encased in a very small and leadless 6-pin TSSOP package, the 74LVC2G17GW,125 is ideal for space-constrained applications. The part number suffix 'GW' indicates the TSSOP package type, and '125' refers to the packing quantity and packaging type, which in this case is a standard reel pack.

Key Features:

• Wide supply voltage range from 1.65 V to 5.5 V
• High noise immunity with Schmitt-trigger action
• Low power consumption with a typical t<sub>CC of 1.5 pF at 5 V
• 5 V tolerant inputs for interfacing with 5 V logic
• Inputs accept voltages higher than V<sub>CC
• Complies with JEDEC standard no. 8-1A
• ESD protection exceeds JESD 22
• Latch-up performance exceeds 100 mA per JESDEC Standard JESD78 Class II Level B

Applications:

The 74LVC2G17GW,125 is versatile and can be used in a wide range of applications. These include:

• Wave and pulse shapers
• Astable multivibrators
• Monostable multivibrators
• Line receivers with long lines
• Interface circuits

With its robust design and ability to interface with different logic levels, the 74LVC2G17GW,125 is a reliable choice for designers looking to enhance signal integrity in their digital applications.
