The BF1201R,215 is a high-performance, dual-gate N-channel silicon MOSFET transistor designed and manufactured by NXP Semiconductors, a leader in the semiconductor industry. This device is particularly suited for a wide range of RF applications, including high-frequency amplification and mixing in the VHF and UHF bands.

Key Features

• High Gain: The BF1201R,215 boasts a high forward transconductance, which ensures substantial gain in your RF applications, providing efficient signal amplification.
• Low Noise Figure: With its low noise figure, the device is perfect for applications where signal clarity is paramount, such as in sensitive RF receivers.
• Dual-Gate Configuration: The dual-gate design allows for excellent linearity and control, making it ideal for frequency modulation and mixing tasks.

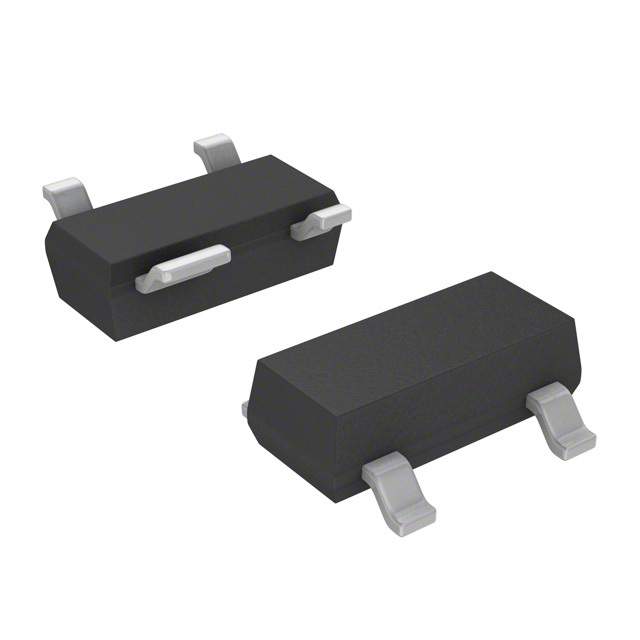

• Surface-Mount Package: Housed in a small surface-mount package (SOT143B), the BF1201R,215 is designed for efficient space utilization on printed circuit boards (PCBs), making it suitable for compact electronic assemblies.

Applications

The BF1201R,215 is a versatile component that can be used in a variety of RF applications. Some of the common uses include:

• Low-noise RF amplifiers
• RF mixers and oscillators
• High-frequency signal processing
• Television tuners
• Professional communication equipment

Technical Specifications

The BF1201R,215 operates with a continuous drain current (ID) of 30 mA and a power dissipation (Ptot) of 200 mW. It has a gate-source voltage (VGS) of 8 V and a drain-source voltage (VDS) of 8 V. The device's forward transconductance (gfs) is typically 30 mS, and it features a low noise figure of 1.2 dB.

Quality and Reliability

NXP Semiconductors is committed to delivering high-quality and reliable components. The BF1201R,215 is built to meet stringent industry standards, ensuring performance and durability for your electronic projects. Its robust construction and proven design make it a preferred choice for engineers and designers looking for a reliable RF solution.
