Introducing the BLF6G20-180RN RF Power Transistor from NXP

The BLF6G20-180RN is a cutting-edge RF power LDMOS transistor designed and manufactured by NXP Semiconductors, a leader in the industry. This high-performance component is specifically engineered to deliver reliable and efficient power amplification in a wide range of applications, including broadcast transmitters, cellular base stations, and RF energy systems.

Robust Design for Optimal Performance

The BLF6G20-180RN is built with NXP's advanced LDMOS technology, which ensures high efficiency, gain, and ruggedness over a broad frequency range. This technology also provides excellent thermal stability, making the device capable of withstanding high temperatures without compromising its performance.

Key Features

• Frequency Range: The device operates effectively within the 1800 MHz to 2000 MHz frequency range, making it ideal for various high-frequency applications.
• High Power: With an impressive output power of 180W, this transistor can handle demanding applications that require a robust power source.
• High Gain: It offers a high gain of 18 dB, ensuring that signals are amplified significantly without the need for additional stages.
• Efficiency: The BLF6G20-180RN boasts an excellent efficiency of 32%, reducing energy consumption and heat generation.
• Ruggedness: The device can withstand a mismatched load VSWR of 10:1 through all phases, providing exceptional durability and reliability.

Applications

Due to its robust construction and high efficiency, the BLF6G20-180RN is perfectly suited for a variety of RF applications. It is commonly used in:

• Telecommunication infrastructure, such as GSM, CDMA, and LTE base stations.
• Professional and commercial radio applications.
• Industrial, scientific, and medical (ISM) applications.
• Broadcasting equipment for both analog and digital transmission.

Easy Integration

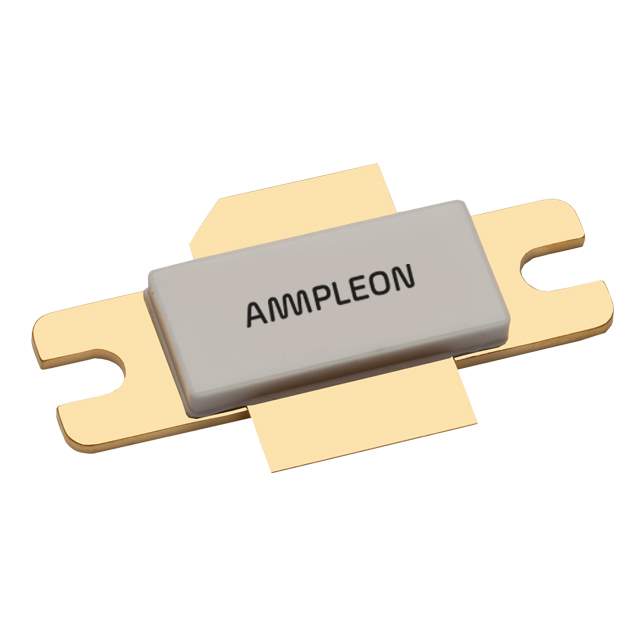

The BLF6G20-180RN comes in a ceramic, flanged SOT539A package, which not only provides excellent thermal conduction but also makes it easy to integrate into existing systems. Its compact design and robust package ensure that it can be implemented in various configurations without the need for extensive redesign.

With its combination of power, efficiency, and ruggedness, the BLF6G20-180RN from NXP Semiconductors stands out as a reliable choice for high-performance RF amplification needs.
