Introducing the GTL2002GM: A Versatile Logic Level Translator from NXP

The GTL2002GM is a state-of-the-art, two-bit, bidirectional level translator designed by NXP Semiconductors. This compact device is specifically engineered to provide a seamless interface between devices operating at different voltage levels. Its primary function is to allow data transfer in multi-voltage systems, making it an essential component for modern electronic applications where interfacing between low-voltage and high-voltage circuits is necessary.

At the core of the GTL2002GM's functionality is its ability to automatically track the translation between a pair of supply voltages, ranging from as low as 1.0V to a maximum of 3.6V. This flexibility makes it compatible with a wide array of devices and systems, from legacy equipment to the latest high-performance microprocessors and FPGAs.

The GTL2002GM distinguishes itself with its non-preferential power-up sequencing, meaning it does not require either V<sub>CCA or V<sub>CCB to be powered first. This feature simplifies system design and enhances the reliability of the application. Furthermore, the device is equipped with power-down protection on all inputs and outputs, ensuring that it remains protected even when one side of the translator is unpowered.

Designed with the needs of high-speed data transfer in mind, the GTL2002GM offers a maximum data rate of 50 Mbps, making it suitable for a variety of digital communication protocols. The open-drain design of the I/O ports further enhances its versatility, allowing for interface with a wide range of signal types.

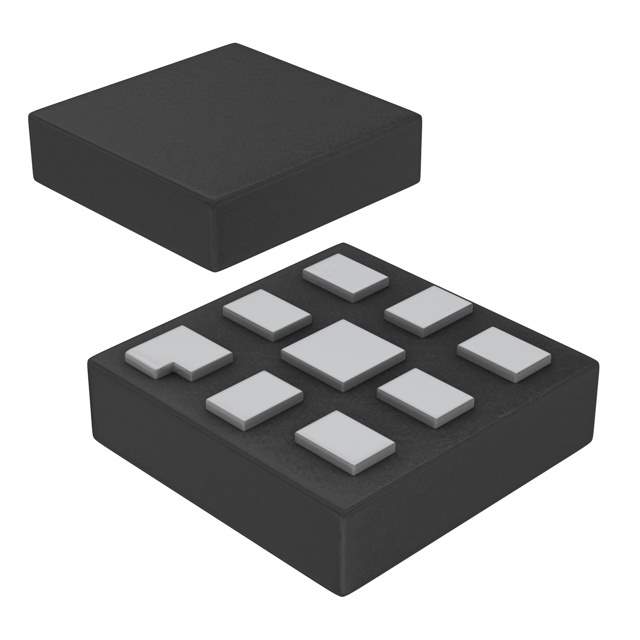

For ease of integration, the GTL2002GM is offered in a compact, leadless micro-package (XSON8). This small footprint allows designers to save valuable board space while maintaining optimal functionality. Moreover, the device is specified from -40°C to +85°C, ensuring reliable performance across a broad range of operating temperatures.

In summary, the GTL2002GM from NXP is an innovative and reliable solution for voltage level translation in multi-voltage systems. Its flexible power supply range, high-speed data transfer capabilities, and robust protection features make it an ideal choice for designers looking to bridge the gap between different logic levels in their applications.
