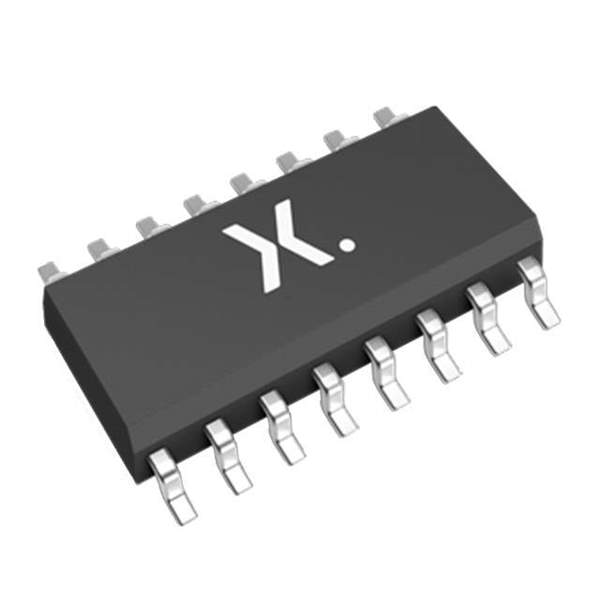

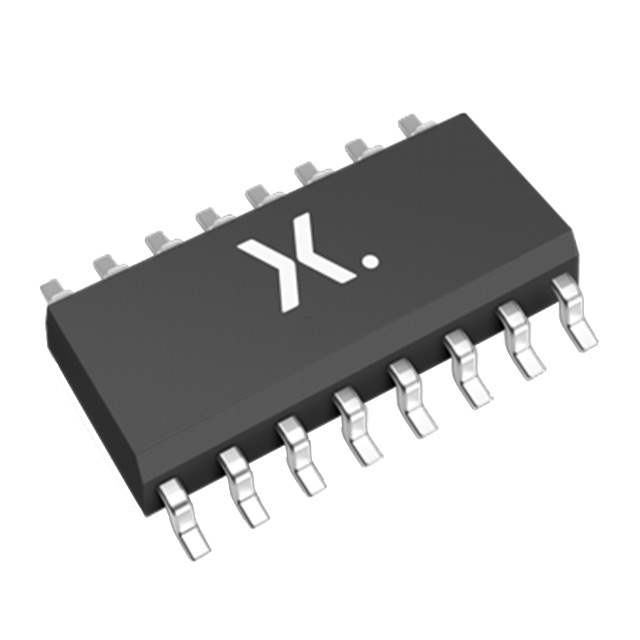

Product Overview: NXP HEF4046BTD-T

The NXP HEF4046BTD-T is a highly versatile, integrated circuit designed for applications requiring a Phase-Locked Loop (PLL) with VCO (Voltage-Controlled Oscillator). It is part of the CMOS HEF4000 family, known for its robust performance and compatibility with a wide range of digital systems. This component is particularly suitable for use in frequency synthesizers, modulators, demodulators, and data communications equipment.

Key Features

• Type: Phase-Locked Loop (PLL) with Voltage-Controlled Oscillator (VCO)
• Package: SOIC-16, a surface-mount package that ensures a compact footprint on PCBs.
• Supply Voltage Range: 3V to 15V, accommodating various logic level requirements and providing design flexibility for both low and high voltage applications.
• Power Consumption: Low static power consumption, making it ideal for power-sensitive applications.
• Frequency Range: Wide VCO frequency range, suitable for a broad spectrum of RF and timing applications.
• Temperature Range: Operating temperature range from -40°C to +85°C, ensuring reliable performance across diverse environmental conditions.

Applications

The HEF4046BTD-T is engineered to cater to a multitude of applications across various industries. Its precision and reliability make it an excellent choice for:

• Frequency synthesis and management
• Wireless communication systems
• Signal processing
• Timing circuits
• Analog and digital modulation schemes

Quality and Reliability

NXP Semiconductors is committed to delivering high-quality products. The HEF4046BTD-T is manufactured with stringent quality control processes, ensuring high reliability and performance consistency. Its robust design is tailored to meet the demands of both commercial and industrial applications, offering a trusted solution for designers and engineers.
