Overview of Product MC33186DH1

The MC33186DH1 is a high-performance automotive H-Bridge Driver designed by NXP Semiconductors. This integrated circuit (IC) is engineered to efficiently control DC motors used in power steering, engine cooling fans, and other automotive applications. With its robust design, the MC33186DH1 offers an excellent solution for designers looking to implement reliable and efficient motor control systems in vehicles.

Key Features

• Load Current Capability: The device is capable of supplying a continuous load current of up to 5 A, making it suitable for a wide range of motor control applications.
• Operating Voltage Range: It operates over a wide voltage range from 5 V to 28 V, which allows for flexible integration into automotive electrical systems.
• Low R<sub>DS(ON): The H-Bridge features low R<sub>DS(ON) of 200 mΩ (typical) per switch at 25°C, which translates to reduced power dissipation and improved efficiency.
• Protection Features: The MC33186DH1 comes with a suite of protection features including overcurrent, short-circuit, under-voltage, and over-temperature protections, ensuring the safety and reliability of the application.
• Diagnostic Functions: Built-in diagnostic capabilities allow for real-time monitoring of system performance and fault conditions, which aids in maintenance and troubleshooting.

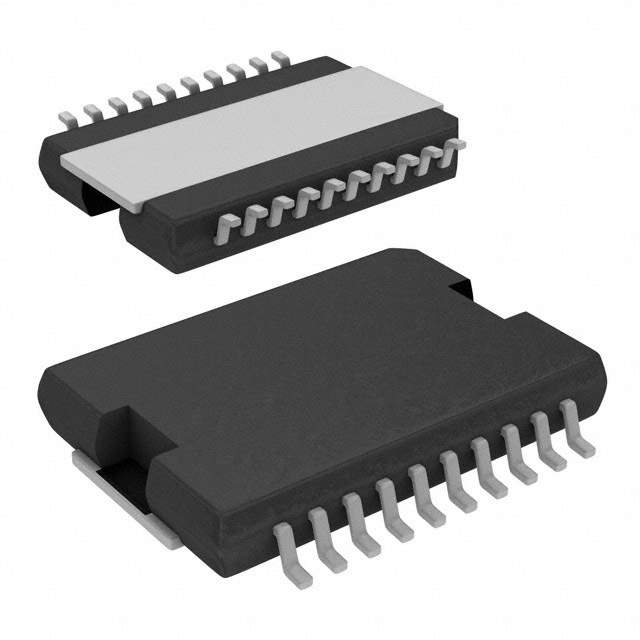

• Package: The device is offered in a compact 20-pin HSSOP package, suitable for space-constrained applications.

Applications

The MC33186DH1 is primarily used in automotive environments but can also find applications in industrial and consumer products where efficient motor control is required. Its ability to handle significant power levels and its protection features make it an ideal choice for:

• Automotive power steering systems
• Engine cooling fans
• Active suspension systems
• Other DC motor-driven applications

In conclusion, the NXP MC33186DH1 H-Bridge Driver is a versatile and robust component that offers a combination of performance, efficiency, and reliability for advanced motor control applications in the automotive industry and beyond.
