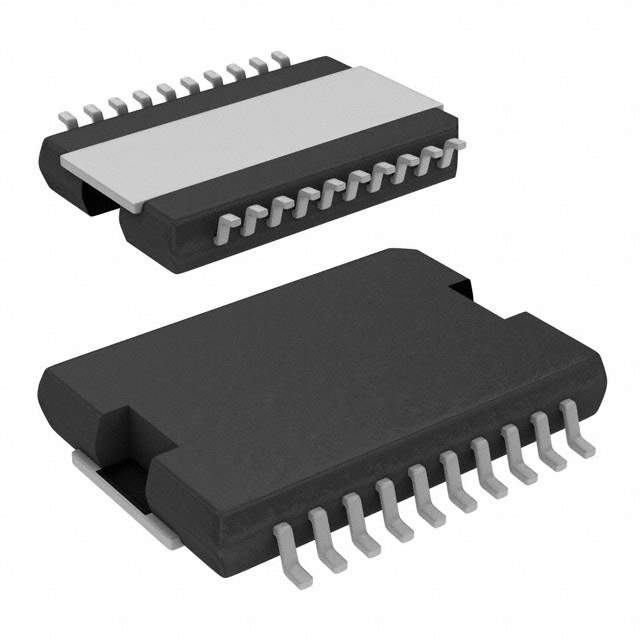

The NXP MC33186VW1 is a monolithic H-Bridge Power IC designed primarily for automotive electronic throttle control but is applicable to any low-voltage DC servo motor control application within the specified current and voltage limits. This high-efficiency device integrates control and diagnostic features to ensure reliable operation and enhanced system performance.

Key Features

• Operating Voltage Range: The device operates efficiently across a wide voltage range from 5V to 28V, making it versatile for various automotive applications.
• Output Current Capability: It can deliver up to 5A of continuous output current, with peak current handling capabilities of up to 10A.
• Low RDS(on): The low on-resistance of the H-Bridge's output transistors ensures minimal power loss and heat generation, which is critical for sustained performance in automotive environments.
• Protection Features: The MC33186VW1 is equipped with over-current limiting, thermal shutdown, and under-voltage shutdown to protect the IC from damage due to abnormal operating conditions.
• Diagnostic Functions: Diagnostic outputs are provided to indicate the status of the device, including the detection of under-voltage, over-current, and thermal shutdown events.
• Configurable Control: The IC can be controlled by standard logic level signals, making it easy to interface with a microcontroller or other control circuitry.

Applications

The MC33186VW1 is an ideal choice for driving DC motors in a variety of applications, including:

• Automotive electronic throttle control
• Variable valve timing
• DC servo motor control in industrial systems

Quality and Reliability

Designed with the stringent requirements of the automotive industry in mind, the MC33186VW1 adheres to high-quality standards for reliability and performance. Its robust construction ensures that it can withstand the harsh conditions typical of automotive environments, such as high temperatures and vibrations.
