The MC68EC000EI8R2 is a high-performance microprocessor from NXP Semiconductors, designed to deliver efficient computation and control for a wide range of applications. This 32-bit processor, with a 16-bit data bus, is a member of the famous 68000 family, known for its rich instruction set and versatility.

Running at a clock speed of 8 MHz, the MC68EC000EI8R2 offers a balanced performance for embedded systems, while maintaining compatibility with the full 68000 line of processors. The processor is fabricated using HCMOS technology, which provides a robust platform for developing reliable and power-efficient products.

Key Features:

• Architecture: 32-bit processing capability with a 16-bit data bus, allowing for powerful computing with efficient data handling.
• Clock Speed: Operates at 8 MHz, offering a good balance between speed and power consumption.
• Instruction Set: Includes a rich set of instructions that have been optimized for control-oriented applications.
• Technology: Manufactured using HCMOS technology, ensuring low power usage and high immunity to noise.
• Supply Voltage: Designed to operate at a supply voltage that is typical for embedded microprocessors, facilitating easy integration into system designs.

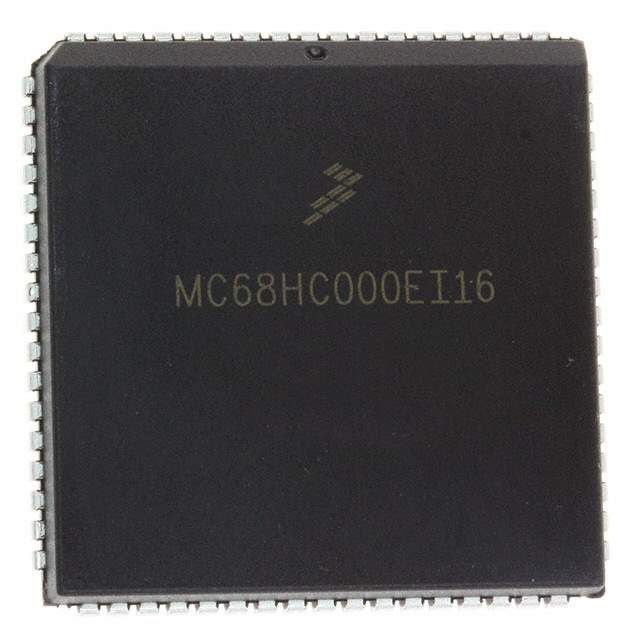

• Package: Available in a PLCC (Plastic Leaded Chip Carrier) package, which is suitable for surface mount technology and provides a compact footprint.

Applications:

The versatility of the MC68EC000EI8R2 makes it ideal for a variety of applications, including but not limited to:

• Embedded control systems
• Automotive electronics
• Industrial automation
• Telecommunication infrastructure
• Consumer electronics

With its robust architecture and compatibility with a wide range of supporting hardware and software, the NXP MC68EC000EI8R2 microprocessor is a solid choice for designers looking to create sophisticated systems requiring reliable processing capabilities.
