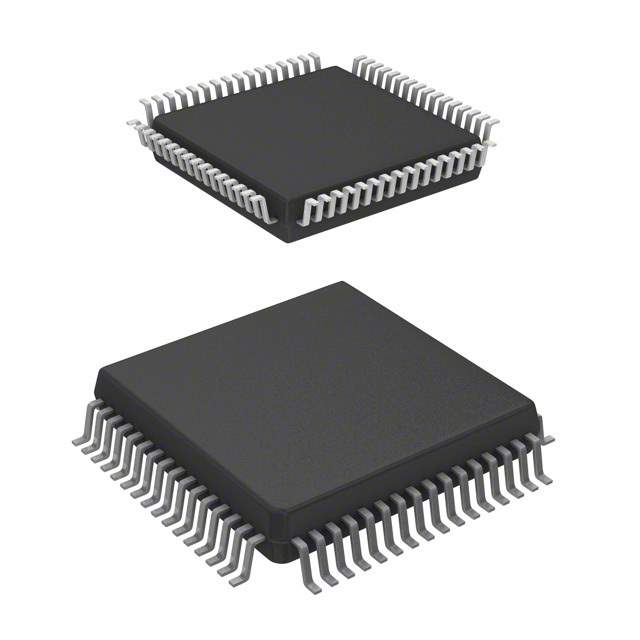

NXP MC9S08PA60AVQH Microcontroller

The NXP MC9S08PA60AVQH is a versatile and powerful 8-bit microcontroller designed to cater to a wide range of embedded applications. It is part of the S08 family of microcontrollers that are known for their robustness, low power consumption, and high-performance capabilities. This particular model comes in a 64-QFP package and is equipped with a wealth of features that make it an ideal choice for industrial control, automotive, consumer electronics, and Internet of Things (IoT) applications.

Key Features:

• Core: At the heart of the MC9S08PA60AVQH lies an S08 core, which operates at a maximum frequency of 20 MHz, providing the necessary processing power for a variety of tasks.
• Flash Memory: The device boasts 60KB of on-chip flash memory, which is ideal for storing application code and data. The flash memory is also highly reliable and supports in-circuit programming for easy updates.
• RAM: With 4KB of RAM, the microcontroller offers ample space for temporary data storage and efficient run-time operations.
• I/O Ports: The MC9S08PA60AVQH provides a rich set of input/output options, including multiple general-purpose I/O pins that support a variety of peripheral functionalities.
• Timers and PWM: It features an array of timers, including an 8-channel, 16-bit timer and a 2-channel, 16-bit timer, along with an 8-channel pulse-width modulator (PWM) for precise control over motor and other applications requiring variable output.
• Analog-to-Digital Converter (ADC): A 12-channel, 12-bit ADC allows the microcontroller to convert analog signals into digital data, making it suitable for sensor interfacing and data acquisition tasks.
• Communication Interfaces: The device includes multiple communication interfaces such as I2C, SPI, and SCI (UART), enabling easy connectivity with other microcontrollers, sensors, and peripheral devices.
• Operating Voltage: It operates within a range of 1.8V to 5.5V, ensuring flexibility in various power supply conditions and applications.
• Temperature Range: The microcontroller is designed to perform reliably in extreme conditions, with an operational temperature range of -40°C to 85°C.

The MC9S08PA60AVQH microcontroller from NXP is a sophisticated and reliable component that offers a balanced combination of performance, power efficiency, and integration, making it a go-to choice for engineers and developers working on next-generation embedded systems.
