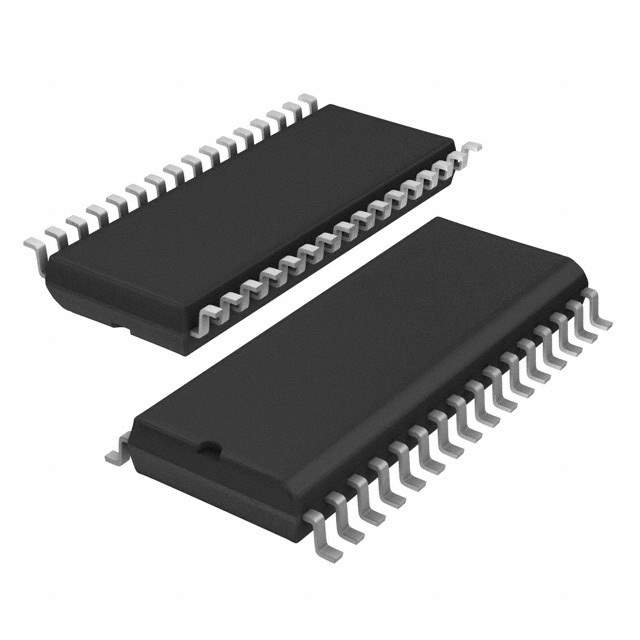

NXP MFRC53101T Product Overview

The NXP MFRC53101T is a high-performance contactless reader IC designed for easy integration into various applications. It is part of NXP's renowned MFRC family, known for its reliability and advanced features in RFID (Radio-Frequency Identification) technology. This product is particularly tailored for use in access control, payment systems, and identification tasks where secure and quick contactless communication is essential.

Key Features

• Highly Integrated Design: The MFRC53101T integrates all necessary components for a contactless communication system, including a transceiver and a sophisticated data processing unit.
• Support for ISO/IEC 14443 A: This product is fully compliant with the ISO/IEC 14443 A standard, which ensures compatibility with a wide range of contactless smart cards and devices.
• Advanced Encryption: With support for secure communication, the IC includes features for encryption and mutual authentication to protect sensitive data during transmission.
• Fast Data Transfer: The MFRC53101T is capable of high-speed data transfer rates, making it suitable for applications that require quick transactions, such as payment systems.
• Flexible Interface Options: It offers a variety of interface options, including serial UART, SPI, and I²C, providing versatility for different system designs and requirements.
• Low Power Consumption: Designed with power efficiency in mind, it is suitable for battery-operated devices, such as handheld readers.

Applications

The MFRC53101T from NXP is ideal for a range of applications. Its robust design and secure communication capabilities make it a top choice for:

• Access control systems
• Public transportation fare collection
• Contactless payment terminals
• Identity verification systems
• Event ticketing solutions

Technical Specifications

The MFRC53101T operates at a 13.56 MHz frequency, which is the standard for most high-frequency RFID systems. It is available in a small, leadless HVQFN32 package, making it suitable for compact designs. Additionally, it features an operating temperature range that accommodates various environmental conditions.

For developers and system integrators, the MFRC53101T is supported by a comprehensive suite of tools, including development kits and reference designs, to facilitate rapid prototyping and streamline the product development process.

With its combination of performance, security, and flexibility, the NXP MFRC53101T is an excellent choice for anyone looking to incorporate a reliable contactless reader into their electronic designs.
