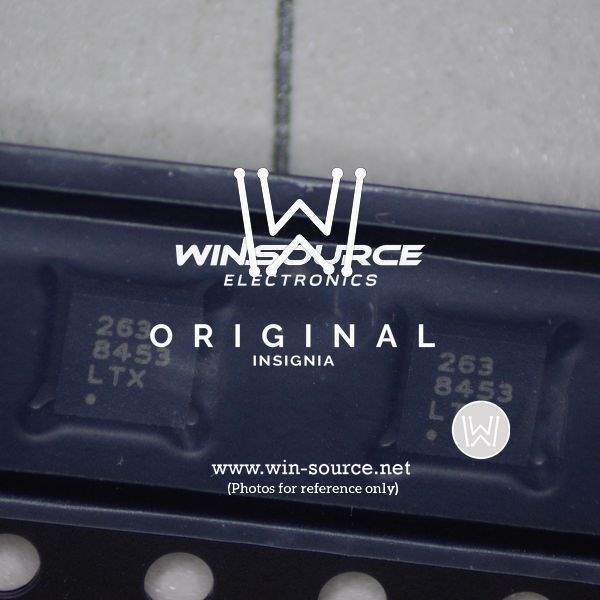

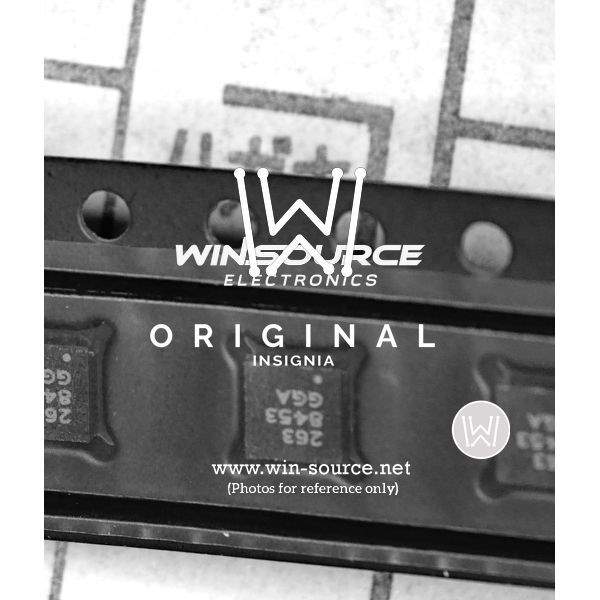

MMA8453QR1

Part No MMA8453QR1
Manufacturer NXP
Catalog Motion Sensors - Accelerometers
Description ACCELEROMETER 2-8G I2C 16QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer NXP

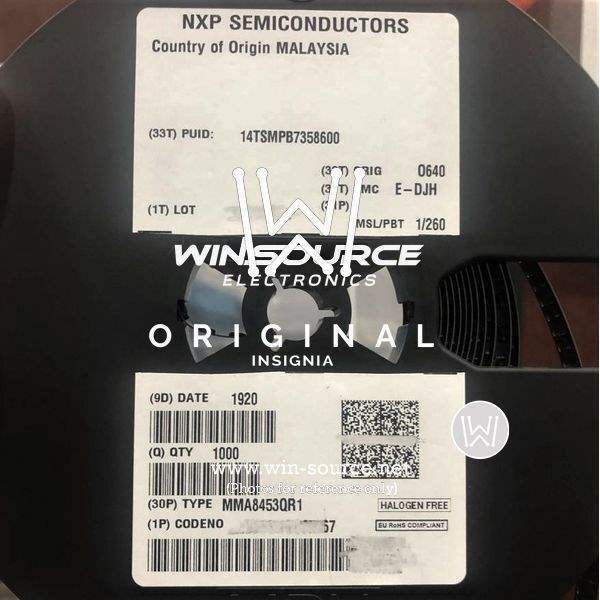

Packaging Reel - TR
Status Active
Type Digital
Axis X, Y, Z
Acceleration Range ±2g, 4g, 8g
Sensitivity (LSB/g) 256 (±2g) to 64 (±8g)
Bandwidth 0.78Hz to 400Hz
Output Type I2C
Supply Voltage - Operating 1.95 V to 3.6 V
Features Adjustable Bandwidth, Selectable Scale, Sleep Mode
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)

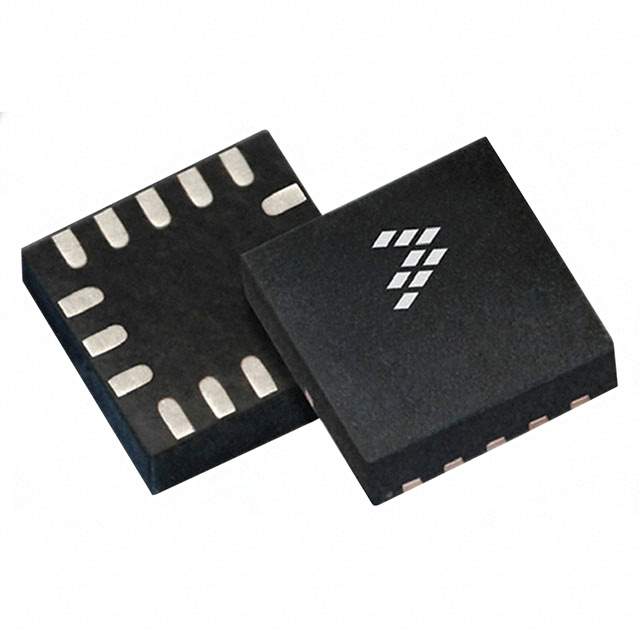

Case / Package 16-QFN (3x3)
Win Source Part Number 1078211-MMA8453QR1
Family Name MMA8453
Introduction Date February 25, 1997
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2022
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Sensing & Instrumentation, Computers & Computer Peripherals, Industrial
Win Source Part Number LIS3LV02DQ-TR;  LIS3DSH;  LIS3LV02DQ;

Description

The NXP MMA8453QR1 is a state-of-the-art, high-performance 3-axis accelerometer designed for a broad range of applications, from mobile devices to industrial instrumentation. This compact sensor offers a perfect blend of energy efficiency and enhanced motion detection features, making it a top choice for designers looking to integrate reliable motion sensing capabilities into their products.

Key Features

  • Resolution: The MMA8453QR1 boasts a 10-bit digital output resolution, ensuring precise motion detection and smooth data interpretation.
  • Range: It offers configurable ranges of ±2g/±4g/±8g, allowing for flexibility in various use cases and sensitivity requirements.
  • Output Data Rates: The device supports output data rates (ODR) from 1.56 Hz to 800 Hz, providing versatility for both low-power and high-speed applications.
  • Low Power: Designed with power efficiency in mind, it features low-power modes for battery-sensitive applications, ensuring long operational life without sacrificing performance.
  • Orientation Detection: The accelerometer includes orientation detection capabilities, making it ideal for screen rotation applications in smartphones and tablets.
  • Freefall Detection: With its freefall detection feature, the MMA8453QR1 can be used to implement drop protection in portable electronic devices, triggering a power-down or lock state upon detecting a fall.
  • High-Pass Filter: A built-in high-pass filter allows for the elimination of noise and variations due to gravity and other constant accelerations.
  • I2C Interface: The device is equipped with an I2C digital interface, facilitating easy integration with most microcontrollers and processors.

Applications

The versatility of the MMA8453QR1 makes it suitable for a wide array of applications, including:

  • Smartphones and Tablets
  • Personal Electronics
  • Medical Devices
  • Gaming and Pointing Devices
  • Industrial Controls
  • Navigation Systems

With its robust feature set and NXP's commitment to quality, the MMA8453QR1 is an excellent choice for any project requiring accurate and reliable motion sensing.
