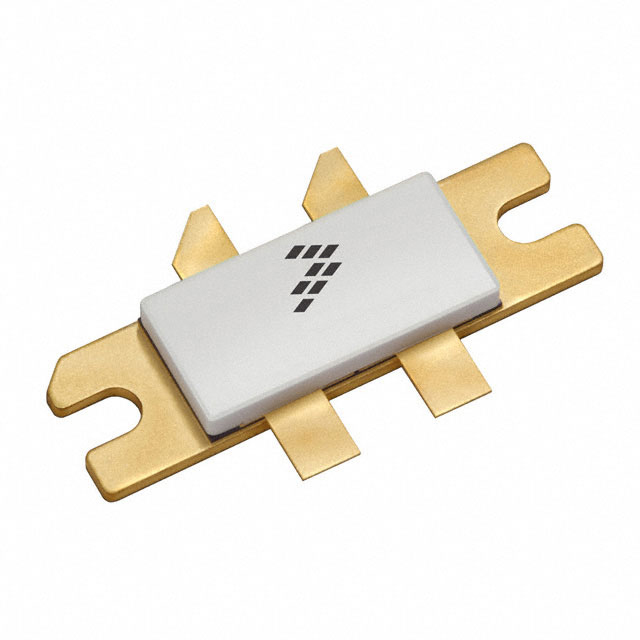

NXP MMRF1305HR5 RF Power Transistor

The NXP MMRF1305HR5 is a high-performance Radio Frequency (RF) power transistor designed to meet the rigorous demands of professional RF energy applications. This device is part of NXP's highly regarded RF power LDMOS transistor portfolio and is engineered to deliver exceptional efficiency, gain, and thermal performance.

Key Features

• Frequency Range: The MMRF1305HR5 operates effectively within the 1.8 to 600 MHz frequency range, making it versatile for various applications including industrial, scientific, medical (ISM), broadcast, aerospace, and mobile radio.
• High Output Power: It boasts a high output power of 300 W CW, ensuring robust performance for high-power applications.
• High Gain: With a high gain of 23 dB, this transistor amplifies RF signals effectively, minimizing the need for additional amplification stages.
• High Efficiency: The device offers excellent efficiency of up to 70%, which is critical for reducing thermal loads and enhancing system reliability.
• Integrated ESD Protection: The MMRF1305HR5 comes with integrated Electrostatic Discharge (ESD) protection, safeguarding the device against unexpected electrical spikes and improving its longevity.
• Thermally Enhanced Package: It is housed in a thermally enhanced, over-molded plastic package that aids in heat dissipation and ensures stable operation even under high-temperature conditions.

Applications

The MMRF1305HR5 is suitable for a wide array of applications. Its robust design and high power output make it an ideal choice for RF energy applications such as plasma generation, RF heating, and magnetic resonance imaging (MRI). It is also well-suited for use in particle accelerators, laser excitation, and various military applications where reliability and performance are critical. Additionally, its broad frequency range allows it to serve in broadcast transmitters and professional mobile radio systems.

Quality and Reliability

NXP is known for its commitment to quality, and the MMRF1305HR5 is no exception. It is manufactured to the highest standards to ensure consistent performance and reliability. The device's robust construction and integrated protection features ensure that it can withstand the rigors of demanding environments while maintaining its functionality.

Overall, the NXP MMRF1305HR5 is a testament to NXP's leadership in RF power technology, offering a combination of power, efficiency, and reliability that is well-suited for a variety of high-performance RF applications.
