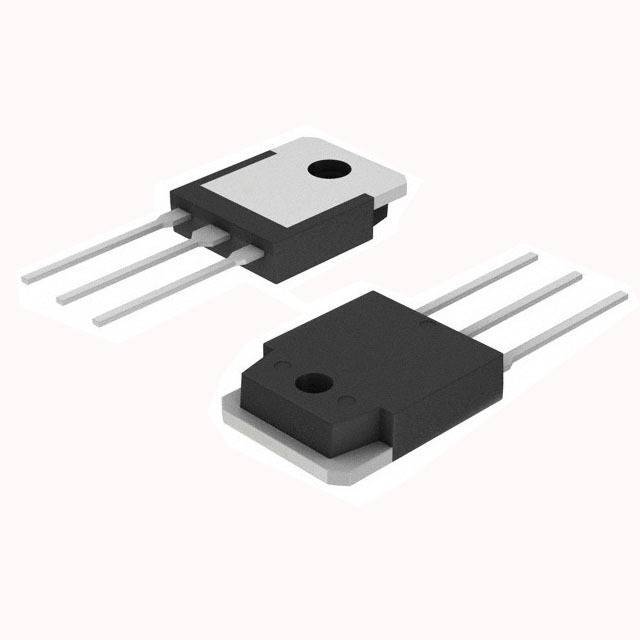

Same model may have multiple batches, images only for reference.
2SC6011A Sanken
Same model may have multiple batches, images only for reference.

2SC6011A

Part No 2SC6011A
Manufacturer Sanken
Catalog Transistors (BJT) - Single
Description TRANS NPN 230V 15A TO3P
Datasheet
2SC6011A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Transistor Type NPN
Current - Collector (Ic) (Maximum) 15A
Voltage - Collector Emitter Breakdown (Maximum) 230V
Vce Saturation (Maximum) @ Ib, Ic 500mV @ 500mA, 5A
Current - Collector Cutoff (Maximum) 10μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 50 @ 3A, 4V
Power - Max 160W
Frequency - Transition 20MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-3P-3, SC-65-3
Manufacturer Package TO-3P
Win Source Part Number 762743-2SC6011A
Popularity Medium
Supply and Demand Status Limited
Family Name 2SC6011A
Introduction Date January 26, 2007
Country of Origin Japan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 2SC6011A CAD Model

Description

The 2SC6011A is a transistor manufactured by Sanken.

  • Package: TO-3P-3, SC-65-3
  • Mounting Style: Through-hole
  • Operating Temperature Range: 150°C (TJ)
  • Maximum Power: 160W
  • Frequency Transition: 20MHz
  • Current Collector (Ic) (maximum): 15A
  • Voltage Collector Emitter Breakdown (maximum): 230V
  • Vce saturation (maximum) @ Ib, Ic: 500mV @ 500mA, 5A
  • Current Collector Cutoff (maximum): 10μA (ICBO)
  • DC current gain (hFE) (minimum) @ Ic, Vce: 50 @ 3A, 4V
  • Alternative Parts: 2SC6011AY
