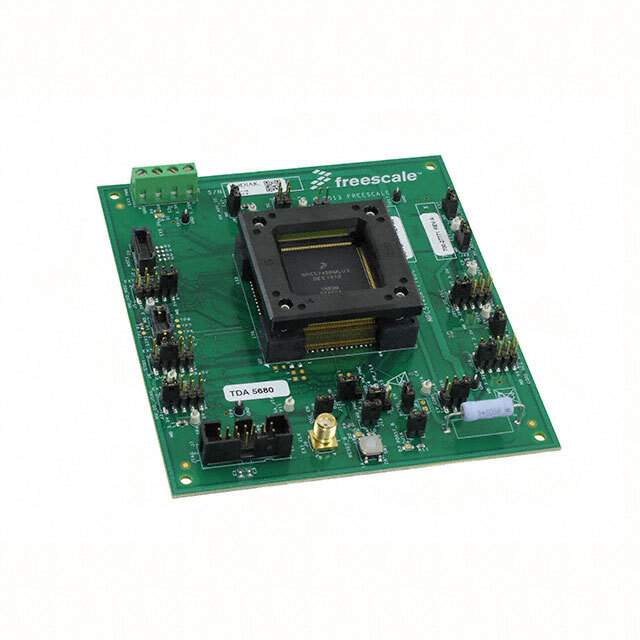

The NXP MPC5746R-176DS microcontroller is a state-of-the-art integrated circuit designed for automotive and industrial applications that demand high levels of performance, reliability, and efficiency. This microcontroller is part of the Power Architecture family and is well-suited for advanced driver-assistance systems (ADAS), powertrain, engine management, and safety-critical applications.

Key Features

• Core: The MPC5746R features a multi-core architecture with up to three e200z4d cores, each capable of operating at speeds of up to 200 MHz, providing robust processing capabilities for complex applications.
• Memory: Equipped with a generous memory range, it includes up to 6MB of on-chip flash memory and 384 KB of RAM, facilitating efficient data storage and quick access for real-time operations.
• Security: With an integrated Hardware Security Module (HSM), the MPC5746R ensures secure communication and data protection, enabling secure boot, encryption, and decryption processes.
• Connectivity: This microcontroller offers a variety of communication interfaces including FlexRay, multiple CAN modules, LIN, and Ethernet for versatile connectivity options in complex automotive networks.
• Analog Interfaces: It also includes multiple ADC modules with high resolution, enabling precise measurement of analog signals critical for sensor data acquisition and control systems.
• Package: The MPC5746R-176DS comes in a 176-pin MAPBGA package, which is designed for optimal space-saving on printed circuit boards and efficient thermal management.

Applications

NXP's MPC5746R microcontroller is engineered to meet the rigorous demands of modern automotive applications, including engine control units, transmission control modules, electric power steering, braking systems, and advanced sensor modules. Its robust design also makes it an ideal choice for industrial automation systems that require high-speed processing and secure data handling.

Support and Ecosystem

NXP provides extensive support for the MPC5746R-176DS through a comprehensive suite of development tools, software libraries, and real-time operating systems (RTOS) from leading vendors. This ecosystem simplifies the development process and enables designers to bring their products to market faster while ensuring compliance with industry standards.
