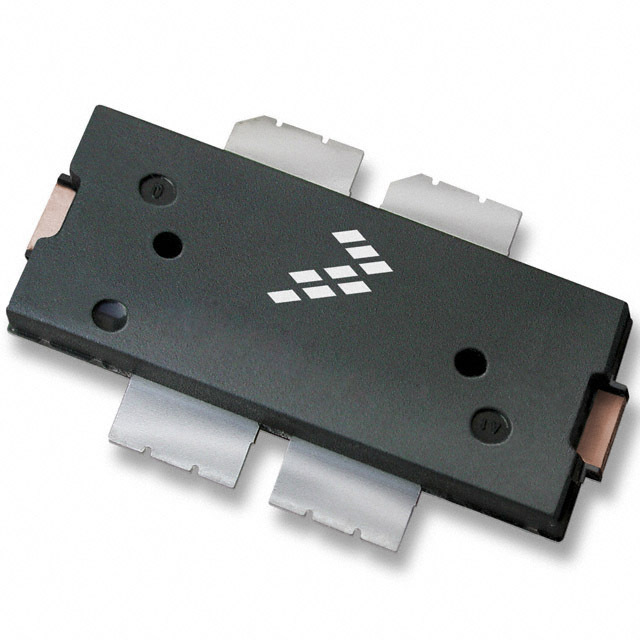

Overview of MRF5S19060NR1 RF Power Transistor

The MRF5S19060NR1 is a high-performance RF power transistor from NXP Semiconductors, designed to deliver exceptional power and efficiency in a compact package. This device is part of NXP's renowned RF power LDMOS transistor family and is engineered to meet the demanding requirements of wireless communication applications.

Key Features

• Frequency Range: The MRF5S19060NR1 operates at a frequency range of 1930-1990 MHz, making it ideal for PCS applications.
• Output Power: It offers a high output power of 60W, ensuring strong signal transmission for reliable communication.
• High Gain: With a gain of 16 dB, this transistor amplifies RF signals effectively to maintain signal integrity over long distances.
• Efficiency: The device boasts an excellent efficiency of 35%, minimizing power loss and heat generation during operation.
• Integrated ESD Protection: Built-in electrostatic discharge protection safeguards the device against sudden voltage spikes, enhancing its durability and reliability.

Applications

The MRF5S19060NR1 is primarily used in RF power amplifiers for PCS base station applications. Its robust design and high power output make it suitable for a variety of other high-frequency communication systems as well.

Package and Quality

Housed in a ceramic package, the MRF5S19060NR1 ensures superior thermal performance and longevity. The package is designed for optimal RF performance and is compatible with standard assembly processes. NXP's commitment to quality means that each transistor is rigorously tested to ensure compliance with industry standards and performance benchmarks.

Conclusion

With its combination of high power, efficiency, and frequency range, the MRF5S19060NR1 from NXP Semiconductors stands out as a leading solution for RF power amplification. Whether for PCS base stations or other demanding RF applications, this power transistor is engineered to deliver consistent performance and reliability.
