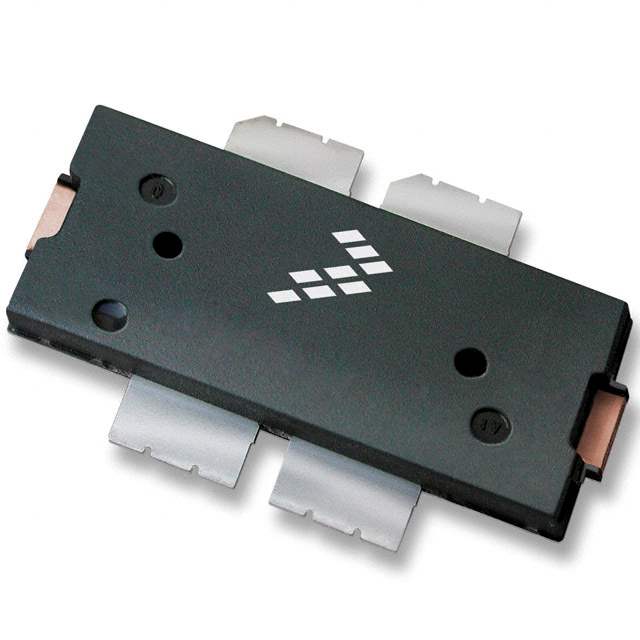

MRF6S18100NR1 RF Power Transistor from NXP

The MRF6S18100NR1 is a high-performance RF power LDMOS transistor designed by NXP Semiconductors. This device is specifically engineered for broadband commercial and industrial applications with frequencies ranging from 1800 to 2000 MHz. With its excellent thermal performance and high efficiency, the MRF6S18100NR1 is an ideal choice for base station applications in today's rapidly evolving wireless communication markets.

Key Features

• Frequency Range: The MRF6S18100NR1 operates efficiently over a frequency range of 1800 to 2000 MHz, making it versatile for various applications including GSM, CDMA, and WCDMA base stations.
• Output Power: It delivers a high output power of 100 W, ensuring strong signal transmission for reliable communication.
• Gain: With a high gain of 17 dB, this RF power transistor amplifies signals effectively to maintain clarity and strength over long distances.
• Efficiency: It offers an excellent efficiency of 35%, minimizing energy loss and heat generation during operation.
• Integrated ESD Protection: The device includes built-in electrostatic discharge (ESD) protection for enhanced reliability and longevity.
• Thermal Performance: The superior thermal performance ensures stability and performance consistency even under high-temperature operating conditions.

Applications

The MRF6S18100NR1 is designed for a variety of RF power applications, including but not limited to:

• Telecommunication base station transceivers for GSM, CDMA, and WCDMA
• Broadband wireless access systems
• Industrial, scientific, and medical (ISM) applications

Quality and Reliability

NXP Semiconductors is known for its commitment to quality and reliability, and the MRF6S18100NR1 is no exception. It is manufactured using NXP's advanced LDMOS technology, which ensures robustness, longevity, and performance in demanding environments. The transistor is available in a RoHS compliant package, aligning with environmental standards and regulations.
