The MRF6VP41KHSR5 is a high-performance RF power LDMOS transistor designed by NXP Semiconductors. This device is specifically engineered to deliver outstanding performance in broadcast applications, including radio and TV broadcast transmitters. With its advanced LDMOS technology, the MRF6VP41KHSR5 provides excellent thermal stability and high efficiency, making it a reliable choice for high-power RF amplification needs.

Key Features:

• High Output Power: Capable of delivering a high output power of 1000 Watts CW over a broad frequency range, this transistor is ideal for demanding broadcast applications.
• Frequency Range: The MRF6VP41KHSR5 operates effectively across a wide frequency range of 10 MHz to 600 MHz, providing versatility for various RF applications.
• High Gain: It offers a high gain of 27 dB, ensuring strong signal amplification and improved performance of the end application.
• High Efficiency: With a typical efficiency of 28%, this transistor helps in reducing the overall power consumption and heat generation in high-power systems.
• Ruggedness: The device is designed to withstand a high VSWR (Voltage Standing Wave Ratio) of 65:1 at 50 V, which ensures robust performance even under mismatched load conditions.
• Integrated ESD Protection: The built-in ESD protection enhances the reliability and longevity of the transistor by safeguarding it against electrostatic discharges.

Applications:

• Broadcast transmitters for radio and television
• Industrial, scientific, and medical (ISM) applications
• High-power RF amplifiers
• Large-scale communication systems

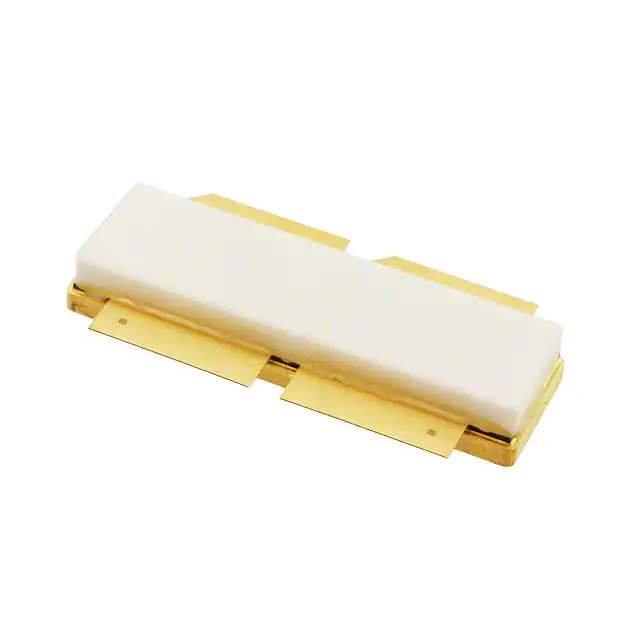

The MRF6VP41KHSR5 is housed in a robust ceramic package that ensures excellent mechanical stability and heat dissipation. NXP's commitment to quality and performance makes this RF power transistor a top choice for designers and engineers looking to build or upgrade broadcast and RF systems with a component that offers both reliability and efficiency.
