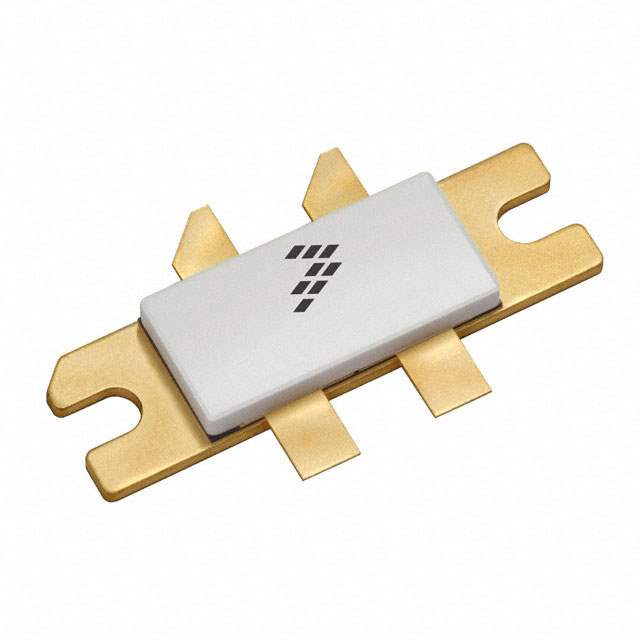

The MRFE6VP6300HR3 is a high-performance RF power LDMOS transistor designed and manufactured by NXP Semiconductors. This robust transistor is specifically engineered for a wide range of applications, including broadcast transmission, industrial, scientific, medical (ISM), and aerospace and defense applications, making it an incredibly versatile component in high-power RF systems.
Key Features
- High Power: With an ability to deliver up to 300 W continuous wave, it is capable of handling high power requirements for various applications.
- Broadband Frequency Range: The MRFE6VP6300HR3 operates effectively across a wide frequency range from 1.8 to 600 MHz, offering flexibility in design across different bands.
- High Efficiency: It offers high efficiency of up to 70%, which is critical for reducing thermal loads and improving system reliability.
- Ruggedness: The device can withstand a VSWR of 65:1 at 50 V, making it resilient in mismatched load conditions often encountered in real-world applications.
- Integrated ESD Protection: It includes integrated ESD protection, which enhances the durability of the device against electrostatic discharge events.
Applications
- Broadcast transmitters for FM radio and VHF television
- Industrial heating, welding, and drying systems
- Medical applications such as MRI and RF ablation
- Plasma generation for semiconductor processing
- Military communications and jamming systems
- Particle accelerators and fusion research
Product Specifications
| Parameter |
Value |
| Frequency Range |
1.8 to 600 MHz |
| Power Output |
300 W CW |
| Drain-source Voltage |
50 V |
| Efficiency |
Up to 70% |
| Package |
NI-1230 |
With its exceptional performance and reliability, the MRFE6VP6300HR3 from NXP Semiconductors is an ideal choice for designers looking to create high-power, efficient, and rugged RF systems.
