The NXP NTS0103GU10,115 is a versatile dual supply translating transceiver designed to serve as a bidirectional interface between two logic circuits operating at different voltage levels. This high-performance component is an essential solution for modern mixed-voltage system designs, allowing for seamless communication between devices that have mismatched IO levels.

Key Features

• Logic Level Translation: Capable of translating signals between two distinct voltage domains, ranging from 1.1V to 3.6V on the A side and 1.65V to 5.5V on the B side.
• Auto Direction Sensing: The NTS0103GU10,115 does not require a direction control signal, as it automatically senses the direction of data flow.
• High-Speed Operation: Supports data rates up to 100 Mbps, making it suitable for high-speed applications.
• Low Standby Current: The device has an ultra-low standby current, which is ideal for power-sensitive applications.
• ESD Protection: Integrated electrostatic discharge (ESD) protection circuits safeguard the device from static damage.

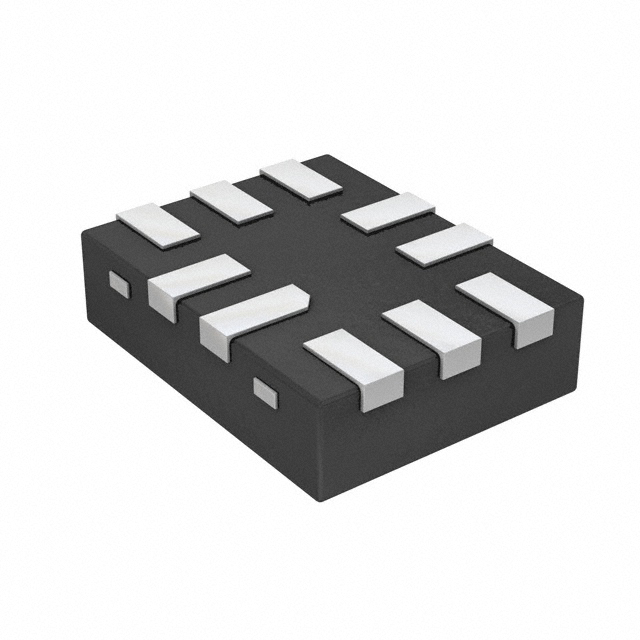

• Multiple Package Options: Available in a small 10-pin XSON package, which is ideal for space-constrained applications.

Applications

The NTS0103GU10,115 is suitable for a wide range of applications that require voltage level translation, including:

• Mobile Devices
• Computers and Peripherals
• Microcontroller-based Systems
• Data Communication Systems
• Consumer Electronics

Quality and Reliability

NXP Semiconductors is known for its commitment to quality and reliability, and the NTS0103GU10,115 is no exception. This product is manufactured to the highest standards, ensuring consistent performance and longevity in a variety of operating conditions.

Ordering Information

To order or obtain more information about the NXP NTS0103GU10,115, please visit the NXP Semiconductors official website or contact an authorized distributor. Ensure that the part number NTS0103GU10,115 is referenced to receive the exact product specifications described herein.
